Terrazzo Raised Access Floor System

Verified by manufacturer 1 month ago

Matt - Bianco Carrara (<R9)

Access Floors Distribution Variant:

The AFD Terrazzo Raised Access Floor System combines the flexibility of a Raised Access Floor, with a stunning Terrazzo finish that has a wide range of colours and blends available to choose from

Jump to:
BOS
01480 367096 Website

Application

Suitable for indoors and outdoor applications.

Description

The AFD Terrazzo Teknica system is a patented raised access floor panel, crafted in Italy with the upmost precision and attention to detail.


Historically to combine the functionality of a raised access floor, with a stone finish, the raised floor panel and finish panel would have to be manufactured separately then bonded together.


However, The Teknica System is created entirely from natural, raw and recycled materials without any bonding, chemicals or adhesives involved in its production.

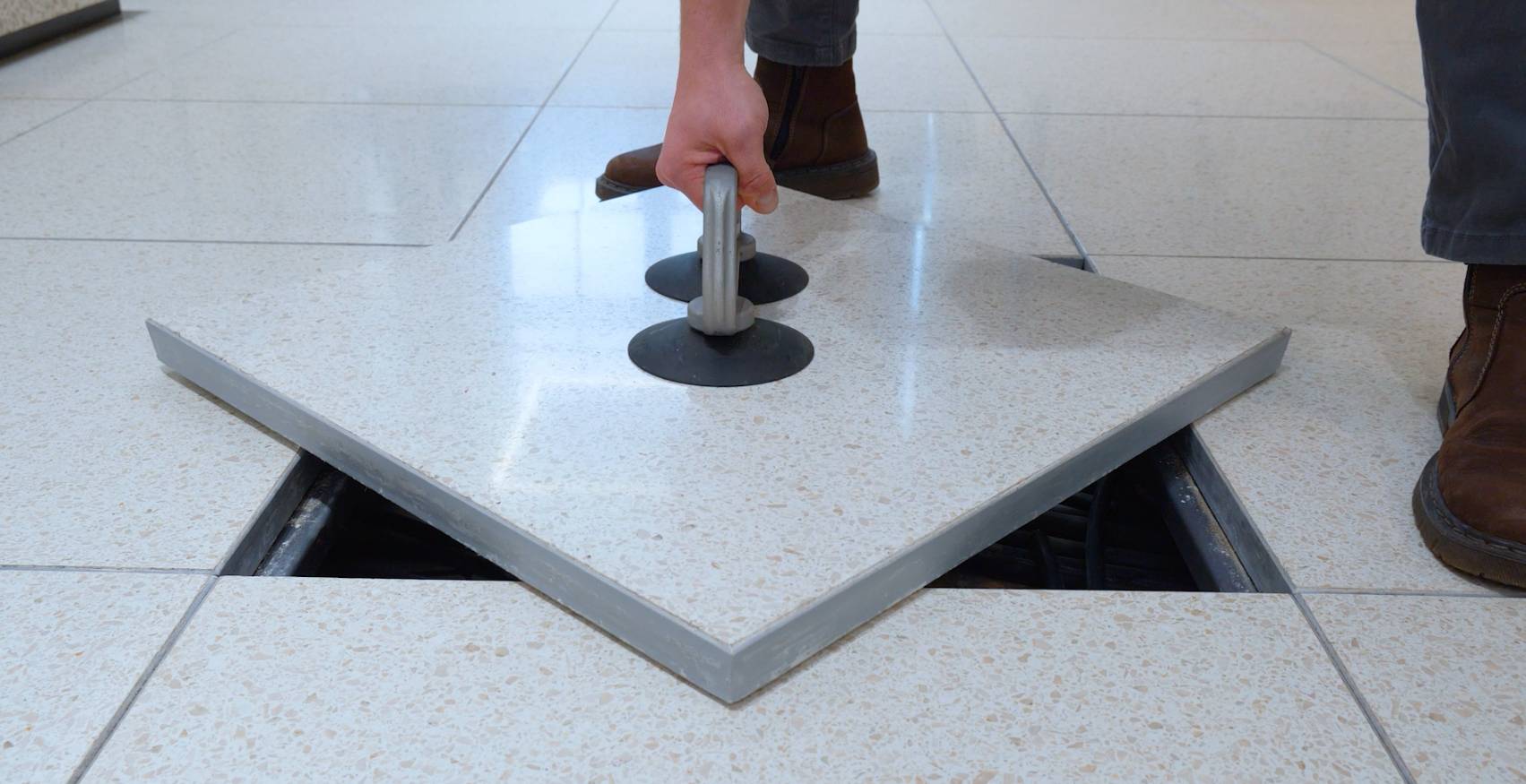

The desired Terrazzo compound is poured into the 600x600mm re-enforced ABS edge band which creates one solid Terrazzo Raised Access Floor Panel


The result is a high end design finish which creates an attractive space, combined with the practicalities of a fully accesible raised floor system.


Features and benefits:

  • Fully accessible 600 x 600mm raised floor panel
  • High non-slip resistance.
  • Non-combustible fire rating.
  • High acoustic performance.
  • Manufactured from natural raw and recycled material.
  • Durable and hard wearing solid feel floor.
  • Centre edge panel load to 2.5 mm deflection = 6 kN.
  • Wide range of Terrazzo blends available including custom made blends to achieve varying colours and styles

General information

Color

Beige

Black

Blue

Cream

Ivory

Show more

Finish

Matt

Brushed

Material

Terrazzo

Guidance for specification option:

Manufactured from natural raw and recycled material.

Shape

Square

Length

600 mm

Width

600 mm

Height

36 mm

Warranty description

One year

Uniclass

Ss_30_20_70_70 Raised access floor systemsPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

K41/120 Raised access floor

K41/110 Raised access floor

Specification data - Raised access floor systems

System performance

Structural load class 2 to BS EN 12825.

Guidance for specification option:

Panel can be made thicker to improve load performance if required.

Subfloor preparation

Prime the unfinished floor surface.

Guidance for specification option:

Use suitable PVA sealer.

Support structure type

Access floor pedestals.

Pedestal fixings

1-Part pedestal adhesive.

T-Lock pedestal thread adhesive

Mechanical fixings.

Guidance for specification option:

Over 400 mm void.

Raised access floor surface

Raised access floor panels with terrazzo finish.

Barriers in floor void

-

Fire barriers

Guidance for specification option:

Consult manufacturer and insert requirements.

Acoustic barriers

Guidance for specification option:

Consult manufacturer and insert requirements.

Plenum barriers

Guidance for specification option:

Consult manufacturer and insert requirements.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements.

System accessories

Not required.

Neoprene roll tape.

Panel size

600 x 600 mm.

Guidance for specification option:

Thickness can vary, consult manufacturer for further information.

Panel Thickness

36 mm.

Panel weight

28—30 kg.

Weight

32.34 kg/m².

Manufacturer guidance

Of system.

Fire classification

To ISO DIS 1182:1995, Class 0.

Fire resistance

To UNI EN 1366-6, REI30, RE60, R90.

Reaction to fire

To EN 13501:1, Bfl-s1.

Sound performance

Guidance for specification option:

Consult manufacturer and insert requirements.

Fixing

Loose lay pedestal.

Edging

ABS edge band.

Core

Terrazzo.

Safety

To BS EN 12825:2001, Class 2A2.

Load

3.5 kN (working point load); 15 kN/m² (working UDL).

Load class

Class 5.

Stringers

Heavy duty pedestal stringers.

Extra heavy duty understructure.

Guidance for specification option:

Available on request to increase loading performance.

Pedestals

M20 pedestals.

Guidance for specification option:

 To suit floor height.

Slip resistance

To DIN 51130,

Surface finish

Matt.

Colour

Bianco Carrara.

Bianco Kristal.

Bianco Botticino.

Giallo Reale.

Grigio Bardiglio.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Guidance for specification option:

Manufactured from natural raw and recycled material

Recycled content depends on desired colour finish. Lighter blends typically contain higher recycled content

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

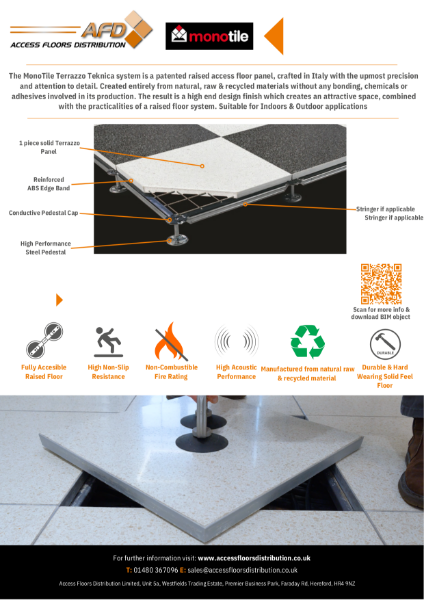

MonoTile Teknica Terrazzo Raised Access Floor System
