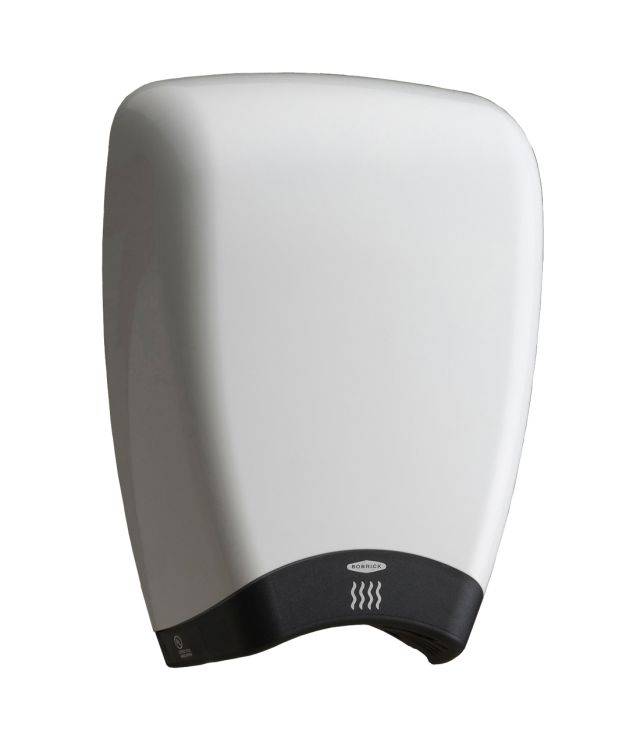

TerraDry Surface Mounted Hand Dryers B-7180, B7188

No-touch operation surface-mounted hand dryers with an aluminium die-cast cover and high-gloss epoxy finish, electrostatically applied.

General information

Uniclass 2015

Pr_40_70_62_37 Hand dryersPrimary


N13/472 Hand dryers

Specification data - Hand dryers

Product Reference


Dryer with white high gloss epoxy cover.


Dryer with chrome cover.


115 V AC

8.5 A, 50/60 Hz, 1000 W, single phase, cULus listed.

208–240 V AC

4.0–4.4 A, 50/60 Hz, 1000 W, single phase, cULus listed and CE marked.

Standard product features

Size (h x w x d):

351 x 259 x 100 mm.


  • Cover: Aluminium die-casting with high-gloss epoxy finish, electrostatically applied. White (B-7180) or chrome (B-7188). Cover projects no more than 100 mm from wall and is secured to mounting base with two vandal resistant, recessed hex-screws.
  • Air-inlet grill: One-piece vandal resistant UL 94-5V black plastic.
  • Mounting base: Equipped with four 6 mm diameter mounting holes and one 22 mm diameter holes suitable for between wall wiring.
  • Motor/ fan: Thermally protected, universal, 1/7 hp, 8000 RPM motor, on resilient mounting. Shielded ball bearings at both ends. Double inlet forward curved impeller, providing air volume of 120 m³/h; air velocity of 35 m/s.
  • Heating element: Coiled Nichrome heating element mounted on a mica frame, protected by integral automatic thermal overload device. To heat air without hot spots and remain inaccessible to vandals.
  • Electronic control: Infrared sensor automatically turns dryer on when hands are held under air outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 1.5 minutes after dryer turns on if an inanimate object is placed across air outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.
