Terrabound Resin Bound Surfacing
Verified by manufacturer 5 months ago
3 mm
3 mm
BBA Agrément Certificate
Certificate type
Cold applied resin bound porous surface course using a minimum blend of three aggregate grades.
Application

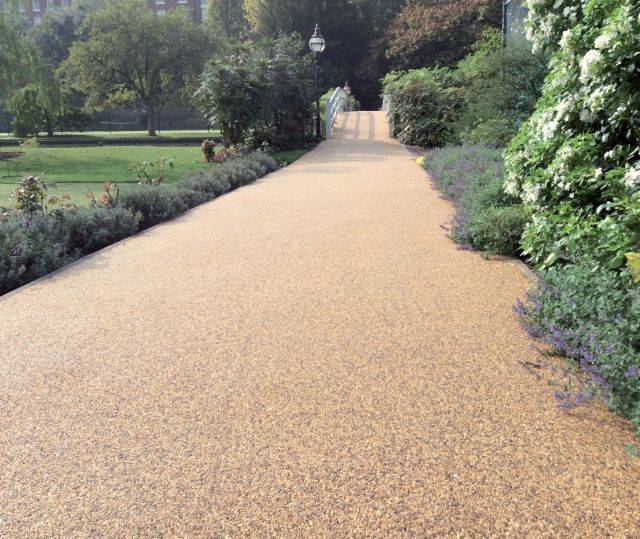

Suitable for use on footpaths, landscaping schemes, cycle paths, domestic driveways, swimming pool surrounds and commercial schemes.
Description
A 'cold applied' surface course consisting of a minimum blend of three aggregate particles, fully coated with a flexible resin providing an attractive, hardwearing, low maintenance surface using a range of natural aggregates. The finished surface, which can be used externally and internally, provides a bound paving system that is flexible and resistant to cracking. Terrabound is a BBA certified product and has an EPD certificate. Life expectancy varies depending on usage but typically a minimum life expectancy between 10–15 years should be expected.
Features and benefits:
- Aesthetically pleasing.
- SUDS Compliant.
- Durable.
- Low maintenance.
- Can be applied on to asphalt, concrete or other stable substrates.
General information
Color | Brown Cream Grey Other Manufacturer guidanceChestnut Brown, Golden Tan, Hazelnut, Peanut, Terracotta, Trent Tuscan, Pebble |
Material | Aggregate Resin |
Uniclass | |
CAWS | Q23/225 Proprietary resin bound chippings Q23/226 Proprietary resin bound chippings overlay |
Specification data - Resin-bound mixed aggregate surfacings
Aggregate | |
Type | Terrabound. |
Size (nominal) | 3 mm. |
Colour | Terracotta 3 mm. Trent 3 mm. |
Binder | |
Type | Terrabound Resin. |
Slip resistance – water wet (minimum) | PTV of 43. |
Density | 1.02 g/cm³. |
Application temperature range | 5—25°C, maximum 80% relative humidity. |
Cure time | Seven days. |
Shelf life | Three months. |
Third-party certification | British Board of Agrément. Guidance for specification option: Certificate: 16/5288. Details: Product sheet 2. |
Sustainability data
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 15.6 kg CO₂ eq/m² Self-declared Lower emissions |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 6 |
 Revit | - | 6 |
