Description

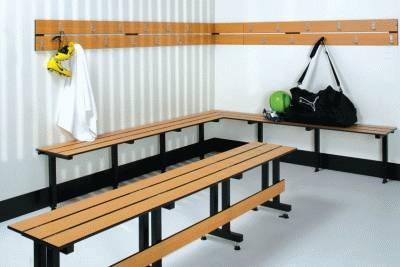

Tempo benching comprises corrosion resistant aluminium frames and choice of seating materials to stand the test of time in both wet and dry environments. Many configurations are offered including wall mounted and island styles with integral hook rail if required. All floor-mounted styles are supported on adjustable legs for onsite levelling.

General information
Uniclass 2015
Linked seats (Pr_40_50_12_47)Primary
Specification data - Linked seats
Product Reference

Tempo Benching

Configuration

Cantilever/ wall hung perimeter bench seating

Free-standing island bench seating with hat and coat rail

Wall/ floor mounted perimeter bench seating

Seating

Single slat

300 mm wide plank manufactured from 12/ 13 mm thick solid grade laminate (SGL).

Multi-slat

Three 100 mm wide planks manufactured from 12/ 13 mm thick solid grade laminate (SGL).

Hardwood slat

Three 90 mm wide planks manufactured from 30 mm thick hardwood (beech).

Colour -
Slats

Insert requirement from standard SGL range or insert 'Not applicable' for hardwood slats.

Frame/ support

Polyester powder coated, RAL

For cantilever/ wall hung, insert semi-gloss colour requirement.

Pre-treated and polyester powder coated, RAL

For free-standing and wall/ floor mounted, insert semi-gloss colour requirement.

Pre-treated and polyester powder coated, RAL

For free-standing and wall/ floor mounted, insert semi-gloss colour requirement.

Hook rails

Not required

Single pattress

Double pattress

Standard product features

Height (top of seat):

450 mm.

Width:

300–650 mm.

Frame/ support:

  • Cantilever/ wall hung: 12/ 13 mm thick solid grade laminate (SGL) cantilever support rib fixed to seat and wall through aluminium channel section.
  • Free-standing and wall/ floor mounted: Carbon steel tubular ‘L’ bracket complete with adjustable feet to accommodate uneven floor levels.

Edge treatment:

Exposed edges machined to a smooth finish with radiused safety corner details.
