Temples
Description

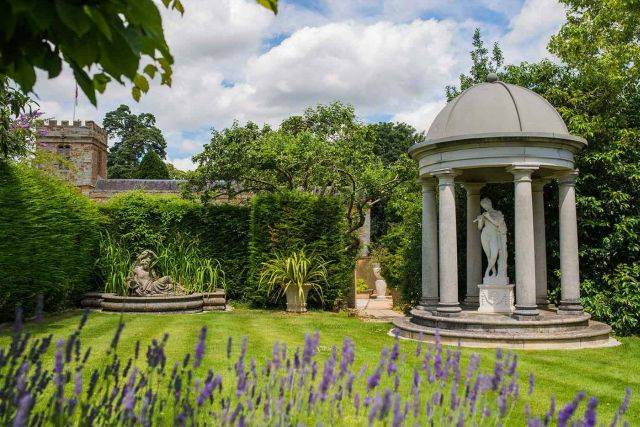

Cast stone temples which are created using a combination of components, including balustrading, columns, flooring and steps. Different sizes (small or large), classic or balustraded options available, or a completely bespoke design.

Robust and frost-proof temple that will last for many years. Suitable centrepiece/ focal point for a garden or landscape.

Additionally available is the temple flooring, which is manufactured in TecStone as standard. Available for balustraded, small classical and large classical temples. Stepped temple floors are available for small and large classical temples.

The glass fibre domes are available in a lead-effect finish, supplied in sections for assembly on site. Decorative wrought iron domes complete with ornate scrollwork are available as an alternative.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

General information

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_93_52_13 Cast stone masonry unitsPrimary

CAWS

B91/365 Pavilion/ Gazebo

F22/110 Cast stone

Specification data - Cast stone masonry units

Product Reference

Temples

Type

Balustraded, L9000

Large classical, L9100

Small classical, L9200

Small classical, L9250

Bespoke

Consult manufacturer for details and insert requirements.

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Flooring

Stepped Floor

Flat Floor

Bespoke

Consult manufacturer for details and insert requirements.

Dome type

Fibre Glass (Lead effect)

Wrought Iron

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

Product Options

Type:

  • Balustraded, L9000: 2667 x 3454 mm.
  • Large classical, L9100: 3323 x 3190 mm.
  • Small classical, L9200: 2752 x 2540 mm.
  • Small classical, L9250: 2574 x 2540 mm.
