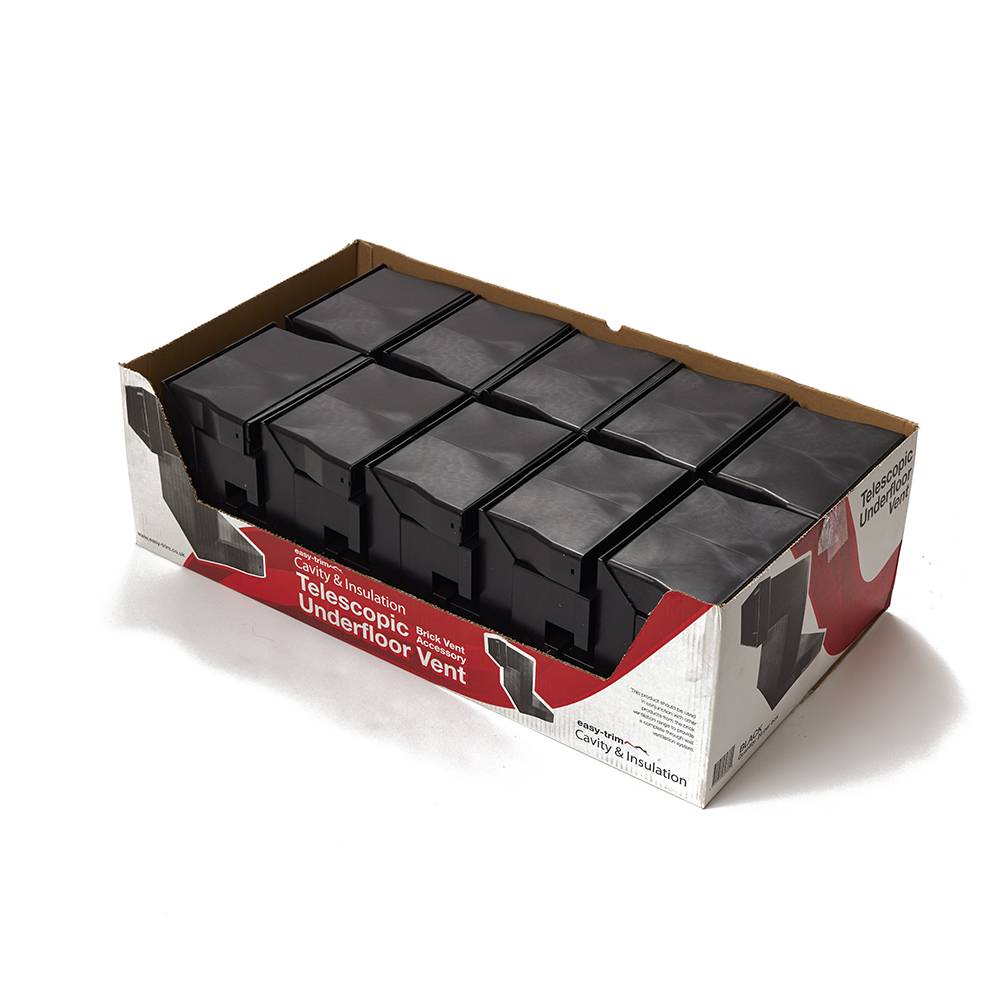

Telescopic Underfloor Vents
Verified by manufacturer 18 days ago
Telescopic underfloor vents are used to create a clear airflow channel into voids below suspended timber and block and beam floors.
Application
Below suspended timber and beam and block floors.
Description
The vents facilitate airflow from beneath suspended floors through the cavity. The units are adjustable vertically to extend through a number of brick courses. The front end of is designed to fit an Easy-Trim Air Brick Vent. If using horizontally, cavity sleevs should be fitted. The rear of the units feature a grille to prevent the entry of any vermin, large insects and debris that may cause blockages.
Features and benefits:
- Provides free airflow of 6600 mm².
- Adjustable for varying brick courses.
- Front Grille to prevent entry of vermin.
- Durable and resistant to decay.
Quality Standards:
- Satisfies all NHBC requirements.
- Conforms to all relevant British Standards.
- Manufactured to BS EN 9001 : 2014.
General information
Color | Black |
Material | Polypropylene |
Shape | Rectangle |
Length | 220 mm |
Width | 230 mm |
Height | 205 mm |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling |
Product range |
Specification data - Ventilation ducts
Material | Polypropylene. |
Vertical offset | Cavity vertical extension. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Telescopic Underfloor Vent Datasheet
