Technowood Natural Veneer Coated Aluminium Finishing & Corner Profiles

Verified by manufacturer 3 days ago

End profiles

Technowood UK Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aluminium profiles with a natural wood veneer.

Jump to:
+44 1494 773344 Website

Application

Tom complement/ finish Technowood Natural Veneer Coated Aluminium products.

Description

Aluminium profiles with a natural wood veneer.


Features and benefits:

  • Provides the visual and tactile effects of natural wood.
  • Requires 98% less timber than equivalent sold wood projects.
  • Minimal maintenance required.
  • Standard profiles are produced with wood veneer on four sides. Optionally they can be veneered on three sides.
  • Standard length on profiles is 6 metres and can be produced shorter or up to 7.5 metres upon special request.
  • As a standard, the end points of the profiles are open; and they can optionally be produced as closed with solid wood. Straight or carved options available.
  • Five colours available as standard; specific colour production can be made for orders above 1000 linear metres.


Benefits of aluminium:

  • Low density and very light compared to steel or copper.
  • Corrosion resistant.
  • Light and durable.
  • Easy to give different forms.
  • Easy to recycle.
  • Very long life span in almost every condition.

General information

Color

Brown

Manufacturer guidance

Eight colours available.

Finish

Natural

Material

Aluminium

Warranty description

20 year

Uniclass

Pr_35_90_28_52 Metal finishing trimsPrimary

CAWS

H21/111 Horizontal timber weatherboarding

H21/15 Horizontal timber weatherboarding

H21/10 Vertical timber weatherboarding

H21/110 Vertical timber weatherboarding

G20/99 Fascias/ barges/ soffits

G20/950 Fascias/ barges/ soffits

H92/120 Rainscreen cladding

Specification data - Metal finishing trims

Material

Aluminium.

Finish

-

Coating

Natural wood veneer.

Guidance for specification option:

FSC-certified veneer, applied to three or four sides as stated.


Specific colour production can be made for orders above 1000 linear metres; consult manufacturer for details.

Colour

Teak.

Guidance for specification option:

Suitable for external environments; water-resistant.

High resistance to insects and fungal damage.

Mahogany.

Guidance for specification option:

Hardwood, suitable for varnishing. Multi-purpose.

Walnut.

Oak.

Guidance for specification option:

Resistant to weather conditions and humidity.

Ash.

Bamboo.

Texture

Natural wood.

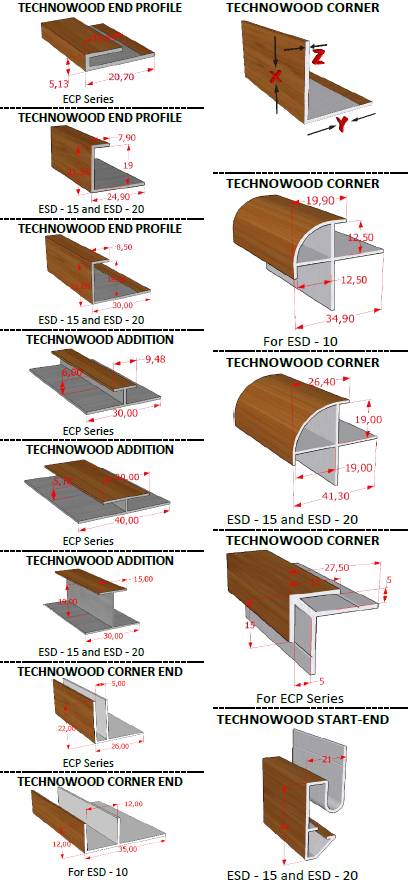

Profiles

End profile.

Size

10.7 x 20.7 mm ECU-1020.

Guidance for specification option:

For use with the ECP series.

Wall thickness: 1.2 mm.

Weight (per unit): 0.140 kg.

24.9 x 19 mm ECB-2419.

Guidance for specification option:

For use with ESD-15 and ESD-20.

Wall thickness: 1.2 mm.

Weight (per unit): 0.130 kg.

8.5 x 30 mm ECU-8530.

Guidance for specification option:

For use with ESD-15 and ESD-20.

Wall thickness: 1.5 mm.

Weight (per unit): 0.200 kg.

Manufacturer guidance

Standard length: 6000 mm. Special sizes can be produced for orders over 1000 linear metres.

Product Reference

Technowood Natural Veneer Coated Aluminium Finishing & Corner Profiles

Panel internal face

Class A1.

Panel external face

Class A2.

Fire rating for panels

A2, s1, d0.

Third party certifications

QA Certificate

QA Certificate

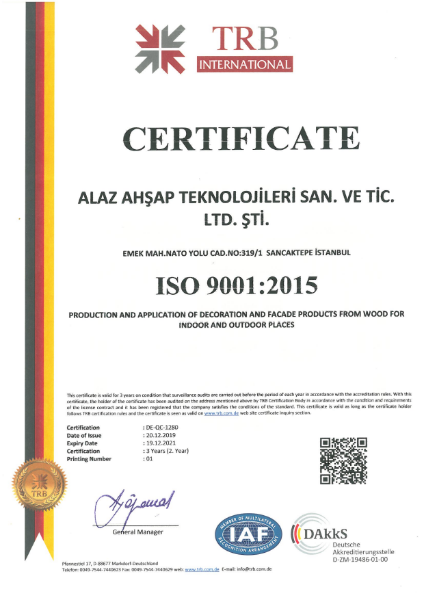

CERTIFICATES (ISO CE FSC EPD) 2021 EN

Literature

Technowood Alu Data sheet

Technowood Alu Data sheet

TECHNOWOOD VARNISH VENEER CHART

TECHNOWOOD VARNISH VENEER CHART

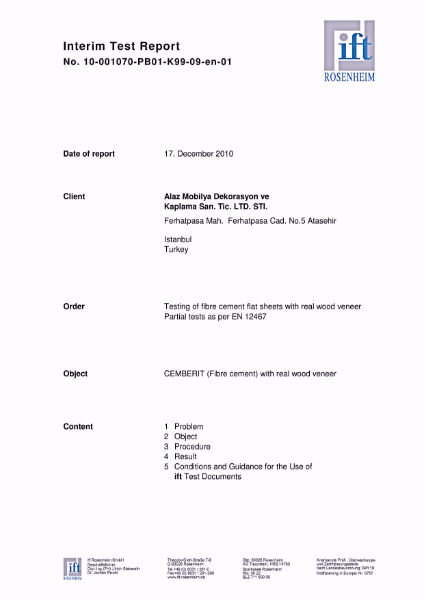

Interim test report No. 10-001070-PB01-K99-en-01

Interim test report No. 10-001070-PB01-K99-en-01

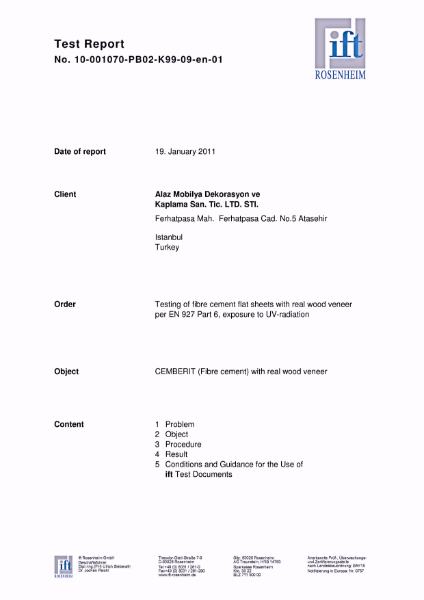

Artificial Weathering Test report

Artificial Weathering Test report
