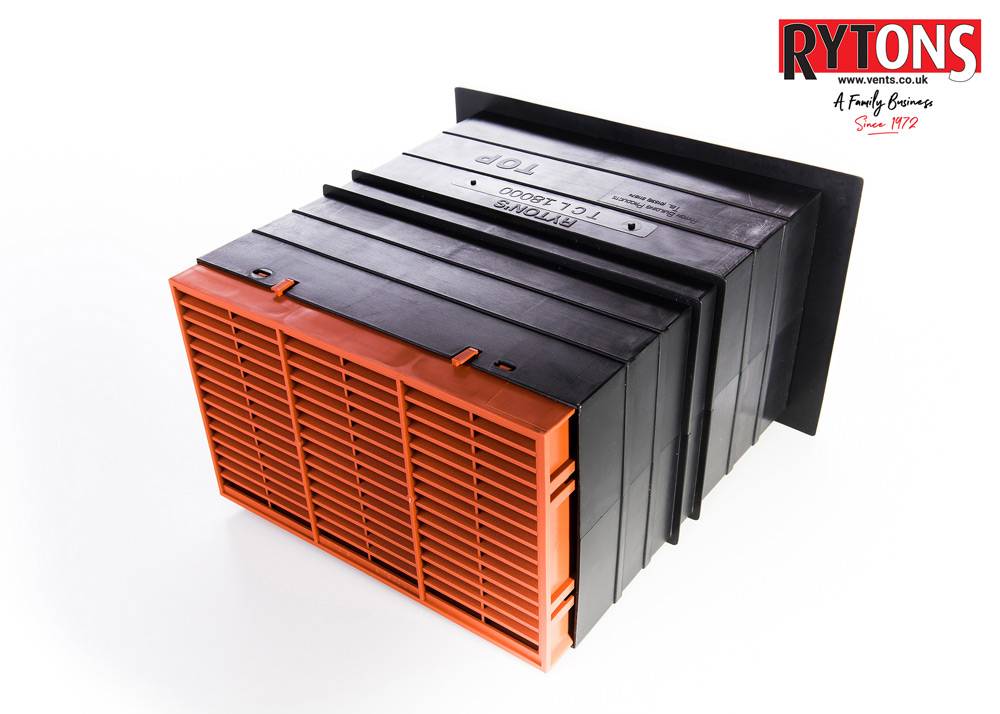

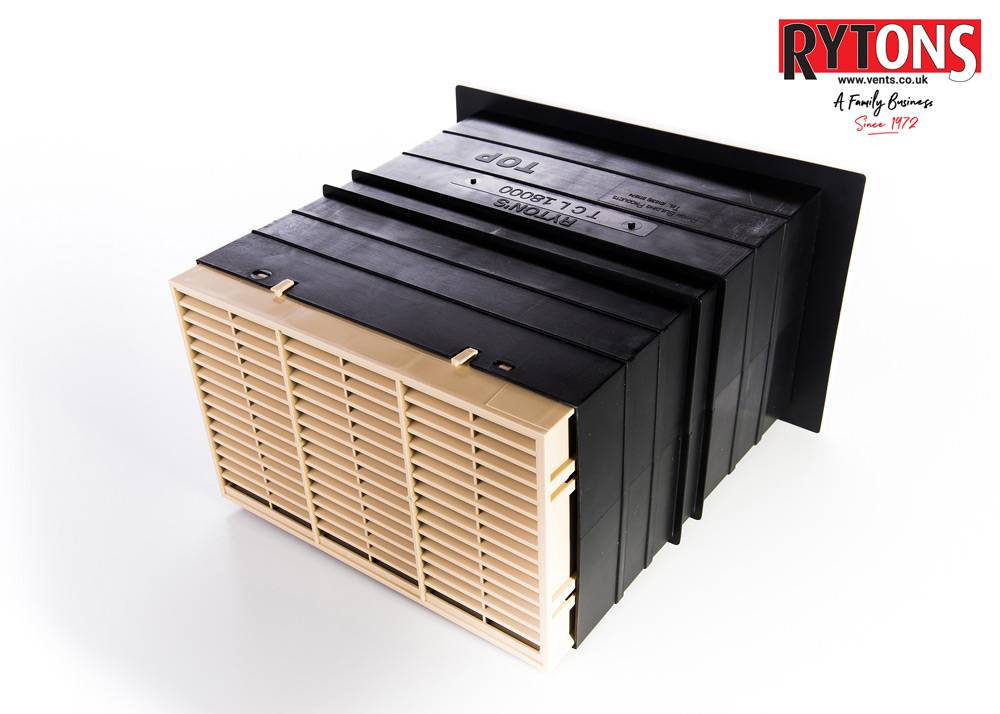

TCL18 - Rytons 9 x 6 Ventilation Set with Flush Louvre Ventilator
Verified by manufacturer 3 months ago
TCL18BB
TCL18BB
Plastic telescopic cavity liner set.
Application
- For ventilating boilers, stoves and fires, HETAS approved for use with solid fuel appliances.
- As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.
Description
Plastic, telescopic cavity liner set, compliant with BS 5440-2.
Features and benefits:
- Telescopic cavity liner contains a system of internal baffles to reduce light and draughts.
- Finished with a fixed open flush fitting louvre ventilator internally.
- External water baffles prevent transfer of water across the cavity.
- Air brick and louvre grille UV stabilized to slow down the effects of sunlight.
- BRE verified equivalent area.
Components:
- Multifix® Air Brick.
- AirLiner®.
- Louvre Grille.
General information
Color | Black Brown Cream Grey Orange |
Material | Plastic Guidance for specification option: UV stabilized polypropylene. |
Size | 220 x 140 mm Guidance for specification option: AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–404 mm L. 264 x 166 mm Guidance for specification option: Louvre Grille: (l x h). |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/310 Ventilators for heating appliances U90/310 Ventilators for heating appliances |
Product range |
Specification data - Ventilation ducts
Material | Plastic.Guidance for specification option: UV stabilized polypropylene. |
Equivalent area | 17 500 mm². |
Air brick | Blue/ Black. |
