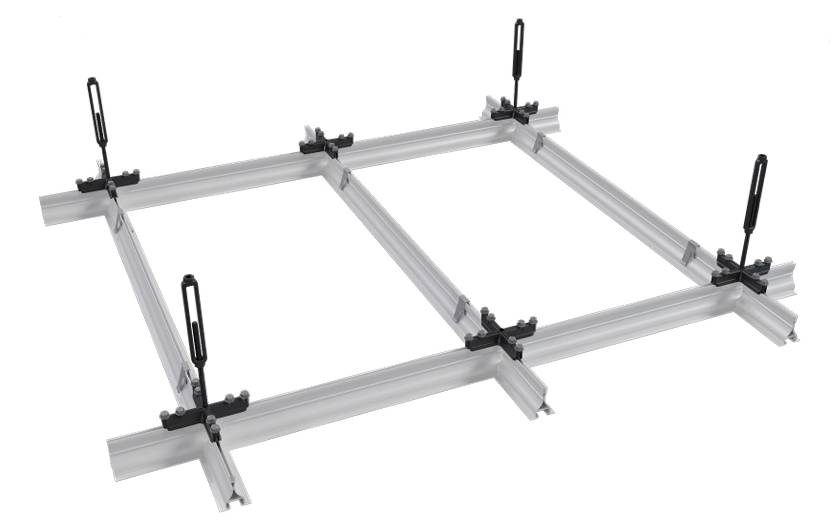

Tate Forte LEC - Structural Ceiling Grid
Verified by manufacturer 3 days ago
Aluminium ceiling system designed for high-density infrastructure.
Application
Designed to support high-density infrastructure, including liquid cooling and higher load demands of AI infrastructure.
Description
Tate Forte LEC is a suspended structural ceiling system grid with low embodied carbon (LEC), manufactured using renewable energy and designed for enhanced safety and efficiency, ensuring seamless integration with liquid cooling and density demands of AI.
Features and benefits:
- Compatible with liquid cooling and AI infrastructure.
- Scalable, with 6.1 kN/m² uniform load capacity for future growth.
- Low embodied carbon materials to reduce environmental impact.
- Versatile hanger positioning on the main runner with straight connectors.
- Fast installation using M8 serrated bolts.
- Supports up to 4.4 kN point load for optimal performance and efficiency.
- Reinforced connectors with ribs and notches for strength and precise alignment.
- Universal strut bottom channel.
- Universal channel nut connection.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | 1200 mm |
Width | 600 mm 1200 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K40/250 Suspension system K40/105 Suspended ceiling system |
Specification data - Demountable suspended ceiling grids
Classification data | |
Grid type | |
Exposed | Main runner and tee section. |
Components | M10 Turnbuckle suspended supports; 3600 mm main runners; perimeter trims; 1200 mm coped structural cross tees; 3600 mm perimeter profile with single flange field connector; XL connector; telescopic extruded splice; high strength cast metal perimeter connector; high strength cast metal corner connector. Manufacturer guidance
|
Material | Aluminium. |
Finish as delivered | |
Coating | Powder-coated. |
Colour | RAL 9003 (white). |
Profile | 85 x 67 mm, flanged profile. |
Weight | 5.9 kg/m². |
Safe Working Load | 4.4 kN. Guidance for specification option: 448 kg. |
Fire performance | To BS EN 1351-1, Class A1. |
Grid spacing | 1200 x 600 mm. Guidance for specification option: Centre to centre. |
Tile size | 1155 x 550 mm. |
Torque | 12 Nm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Ireland |
Material | Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 20 | |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 26.4 % |
Expected Life | 50 year |
