TaperedPlus's Tapered PIR TissueFaced Roof Insulation in conjunction with Unilin Insulation - Bespoke Tapered Insulation Board TR/MG
Verified by manufacturer 5 months ago
EPD
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
BBA Agrément Certificate
Certificate type

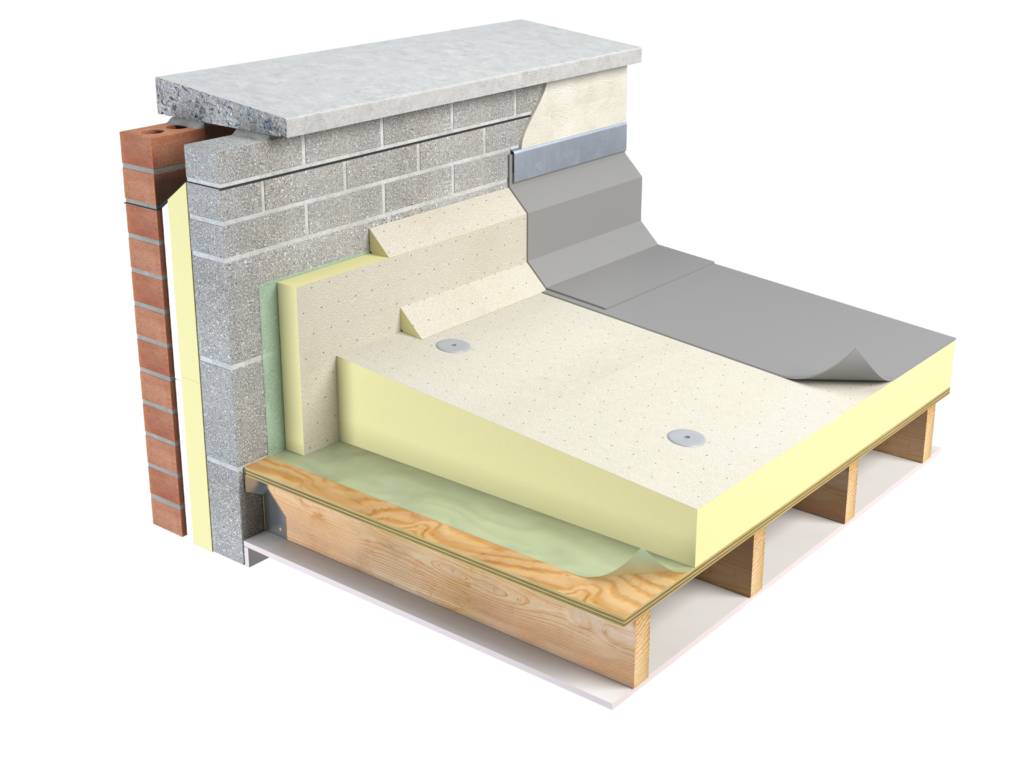

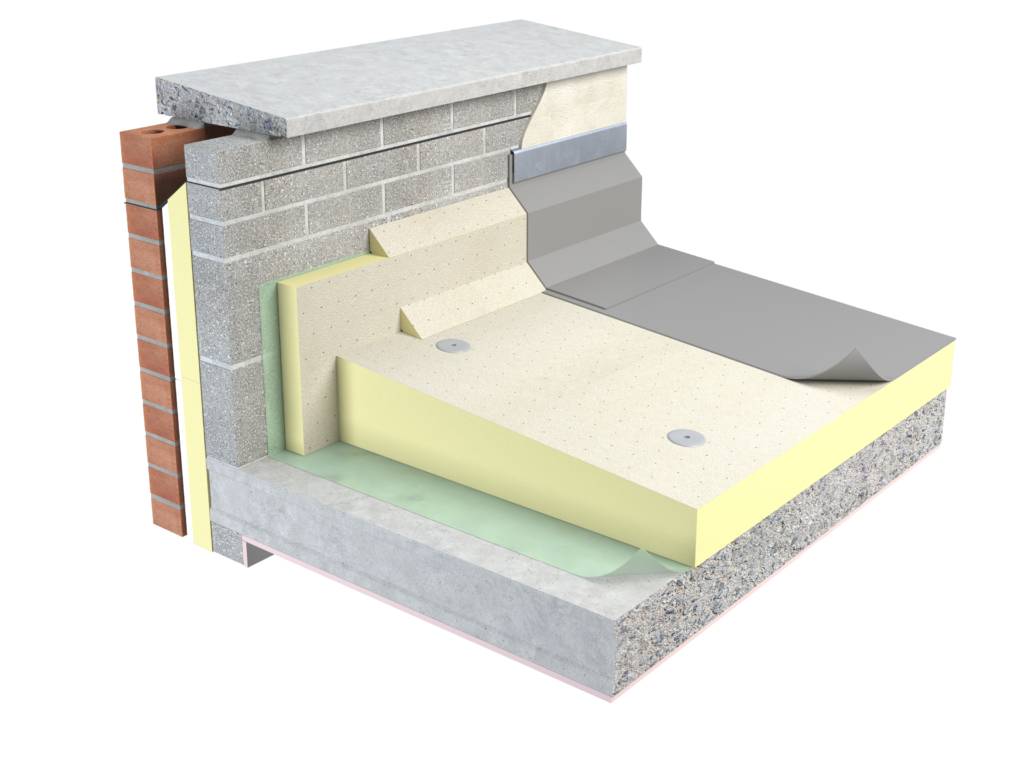

Bespoke PIR tapered roof insulation board for single ply fully adhered / partially bonded built-up felt flat roof insulation systems.
Application
- Suitable for use below partially/ fully bonded roofing systems.
- Suitable for fully bonding with approved adhesive systems.
- Compatible with adhesively bonded single ply roofing membranes laid on mechanically fixed boards.
Description
Bespoke PIR tapered roof insulation board for single ply fully adhered/ partially bonded built-up felt systems.
- TaperedPlus provide a bespoke tapered insulation service.
- Unilin Thin-R TR/MG is a high performance polyisocyanurate (PIR) with mineral coated glass facers suitable for use below single ply fully adhered roof membranes, single ply waterproofing systems and partially bonded built-up felt.
- Part of a range of insulation solutions provided in conjunction with Unilin.
Features and benefits:
- High performance rigid insulation.
- Thermal conductivity as low as 0.024 W/m·K.
- Practical solution to water ponding with insulation and drainage in a single system.
- EPD certified by IGBC available from Unilin.
General information
Color | Yellow |
Material | Polyisocyanurate (PIR) |
Shape | Square |
Length | 1200 mm Guidance for specification option: Standard individual board length. Bespoke |
Width | 1200 mm Guidance for specification option: Standard individual board width. Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/420 Rigid urethane foam insulation |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Third-party certification | British Board of Agrément (BBA)-certified 11/4878. |
Fire performance | Euroclass E, Euroclass B S2 d0 on a steel deck. |
Thermal conductivity (maximum) | 0.024–0.027 W/m·K.Guidance for specification option: Consult manufacturer for details. |
Water permeability | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Water vapour permeability | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Acoustic performance | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Compressive strength at 10% deformation | >150 kPa. |
Cross section | Tapered. |
Thickness (nominal) | Guidance for specification option: Insert requirements, minimum and maximum (refer to drawing or schedule as required; note that boards are 1200 x 1200 mm as standard). Standard thickness range is 30–400 mm. |
Face size (length x width) | 1200 x 1200 mm boards as standard. |
Density | 32 kg/m³. |
Recycled content | 0%. |
Facing | Mineral coated glass facer to both sides.Guidance for specification option: Non-reversible. |
Edges | Square. |
Water vapour resistance | >344 MN·s/gm. |
Fixing | Guidance for specification option: Insert requirements; insulation can be mechanically fixed or bonded to the substrate. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 12.9 kg CO₂ eq/unit |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications

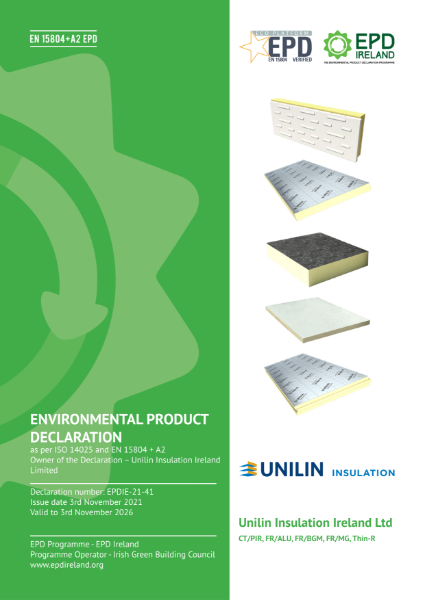

EPD
Unilin's EPD
ISO 45001 Health and Safety Management
Unilin's ISO 45001
ISO 9001 Quality Management
Unilin's ISO 9001
BBA Agrément Certificate
Unilin TR/MG BBA Cert
Literature
Unilin Health & Saftey
Unilin Sustainability Brochure

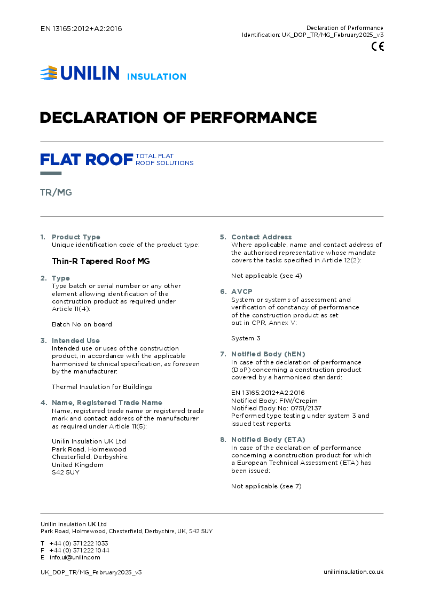

Unilin TR/MG Declaration Of Performance

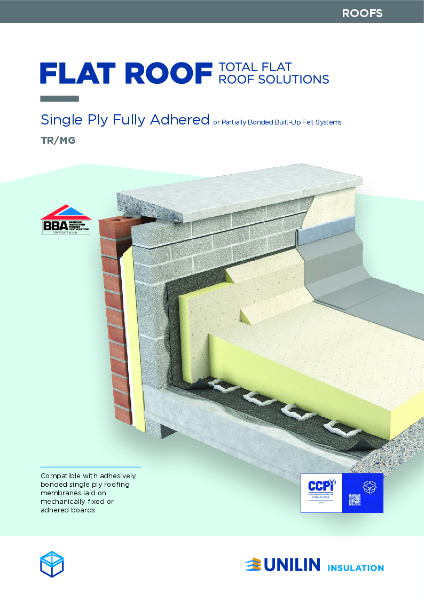

Unilin TR/MG Product Brochure
