Description

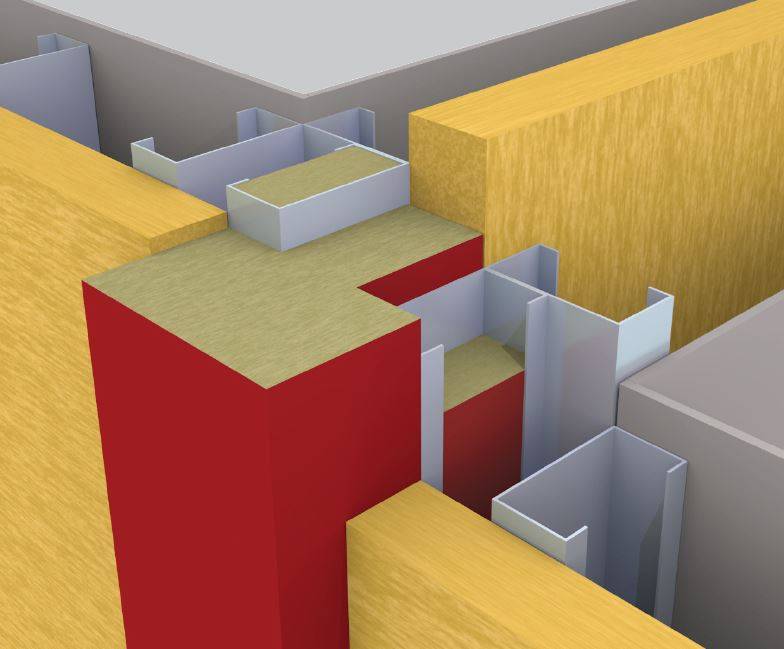

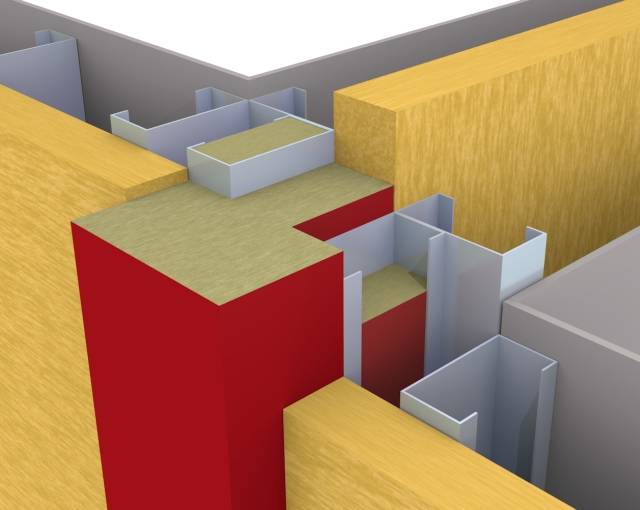

ARC T-Barrier® Metal Frame is a three-piece system that fits into and around the metal ‘C’ sections to offer up to four hours' fire integrity in a metal frame construction where the external leaf is brickwork.

The T-Barrier® Metal Frame is installed as shown as the instructions on the ARC website.

Features:

  • Up to four hours' fire integrity.
  • Three-piece system fire stops at the junction between the party wall and external wall.
  • Excellent acoustic properties.
  • Up to 150 mm external cavity width.
  • Polythene encapsulated for onsite protection.
  • BRE Green Guide 'A+' rating.
  • Manufactured under ISO 9001- and ISO 14001-certified 'Quality and Environmental Systems'.

General information
Features

3 piece system fire stops at the junction between the party wall and external wall, good acoustic properties, polythene encapsilated for on site protection

Material

Rockfibre mineral wool

Shape

T-shape

Uniclass 2015 Mineral wool fire stopping (Pr_25_80_81_51)
Specification data
Product Reference

TBMF

Standard product features

Material:

Rock fibre mineral wool.

Fire rating (to BS EN 13501-1):

Euroclass A1.

Thermal conductivity:

0.037 W/mK.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
