Flexible intumescent gasket for 23 mm glass in screen applications.

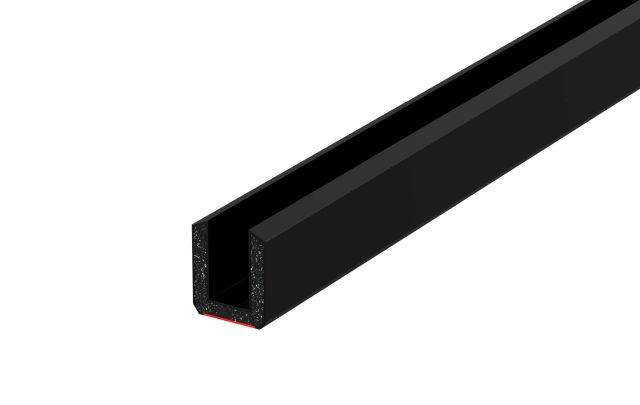

System 36/23 is a flexible U-shaped intumscent gasket which can provide up to 60 minutes fire resistance for glazing in screens. System 36/23 is suitable for use with 23 mm Pyrostop, 23 mm Pyranova and 23 mm Fireswiss foam glass types and does not require a sodium silicate intumescent liner.
The gasket is supplied on a reel so it is easily dispensed and cut to length without wastage.
Beads of the correct dimensions and angle must be used.
Uniclass 2015 | |
CAWS | L10/510 Glazed wood screens L10/56 Glazed screen system L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/55 Doorsets |
Product Reference | Lorient Fire Resistant Glazing System, System 36/23 |
Hardwood bead finishes | BeechOakUtile |
Standard product features | Channel dimensions: 30 x 22.5 mm, in 30 m coil. Ref. LG2229. Colour: Black. Timber glazing beads:
|
