Sylomer® - Mixed-Cell Polyurethane Elastomer

Sylomer® is a PU elastomer which features a celled, compact form and is used in a wide range of applications in the construction and mechanical engineering industries. In most cases, Sylomer® is used as a compression-loaded elastic support element. The characteristics of the elastic support can be adjusted to the structure, construction method and load requirements by selecting the specific type of Sylomer®, the load-bearing area and the thickness.

Sylomer® materials are available as a continuous roll and are particularly well suited as flat, elastic layers. Above and beyond this, engineered moulded parts made of Sylomer® are also available.

Features and benefits:

• Combination of spring and damping characteristics.
• Elastic, versatile polyurethane material.
• Mixed-cell pore structure.
• High elasticity, long service life.
• Static range of use of 0.011 N/mm² to 1.2 N/mm².
• Load peaks up to 6.0 N/mm².
• Very low amplitude dependence.
• Proven long-term behaviour.
• High fatigue strength
• Finely graded range (ten standard types) for optimum system design.
• Ability to provide customer-specific modifications.

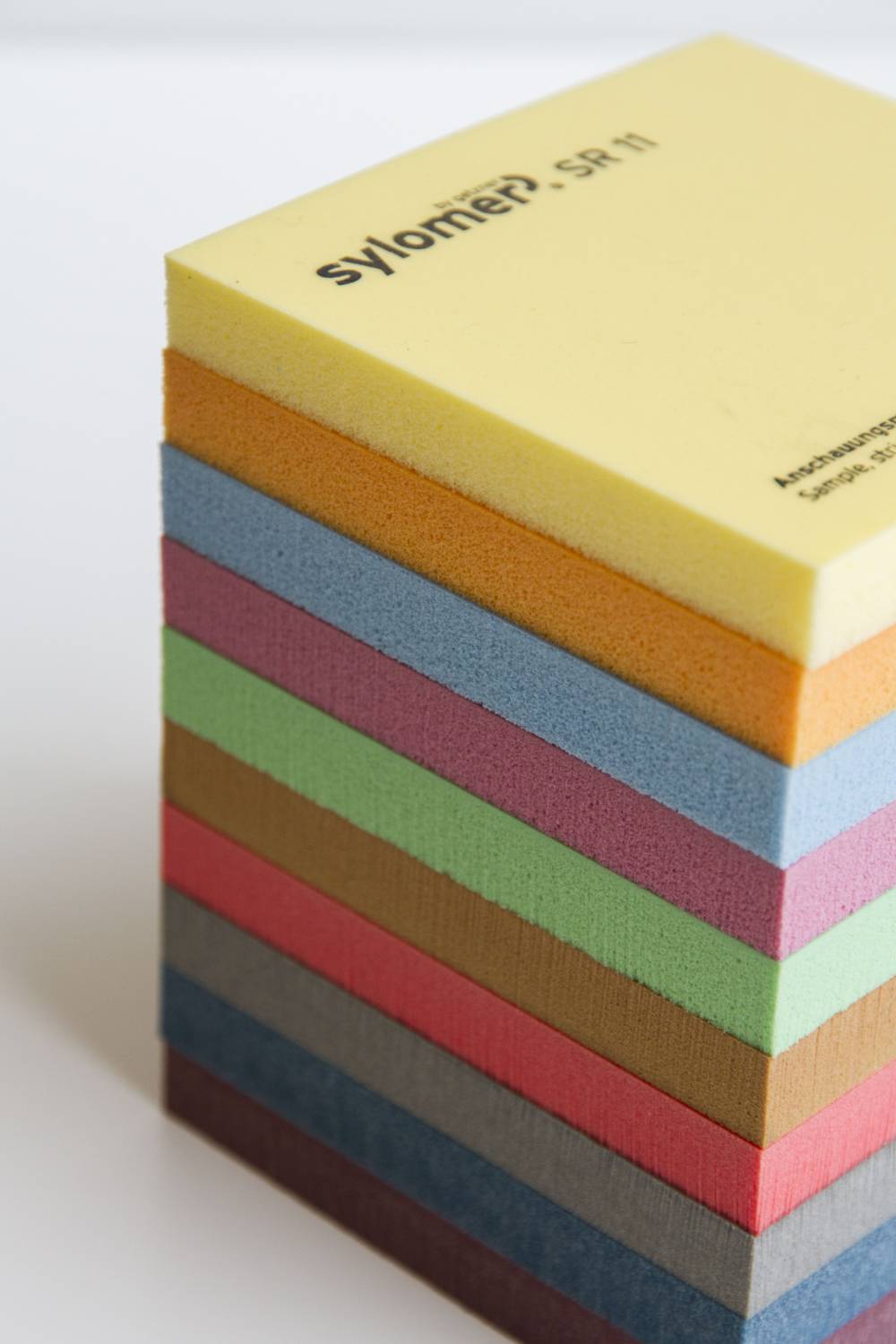

Types available:

• SR 11.
• SR 18.
• SR 28.
• SR 42.
• SR 55.
• SR 110.
• SR 220.
• SR 450.
• SR 850.
• SR 1200.
