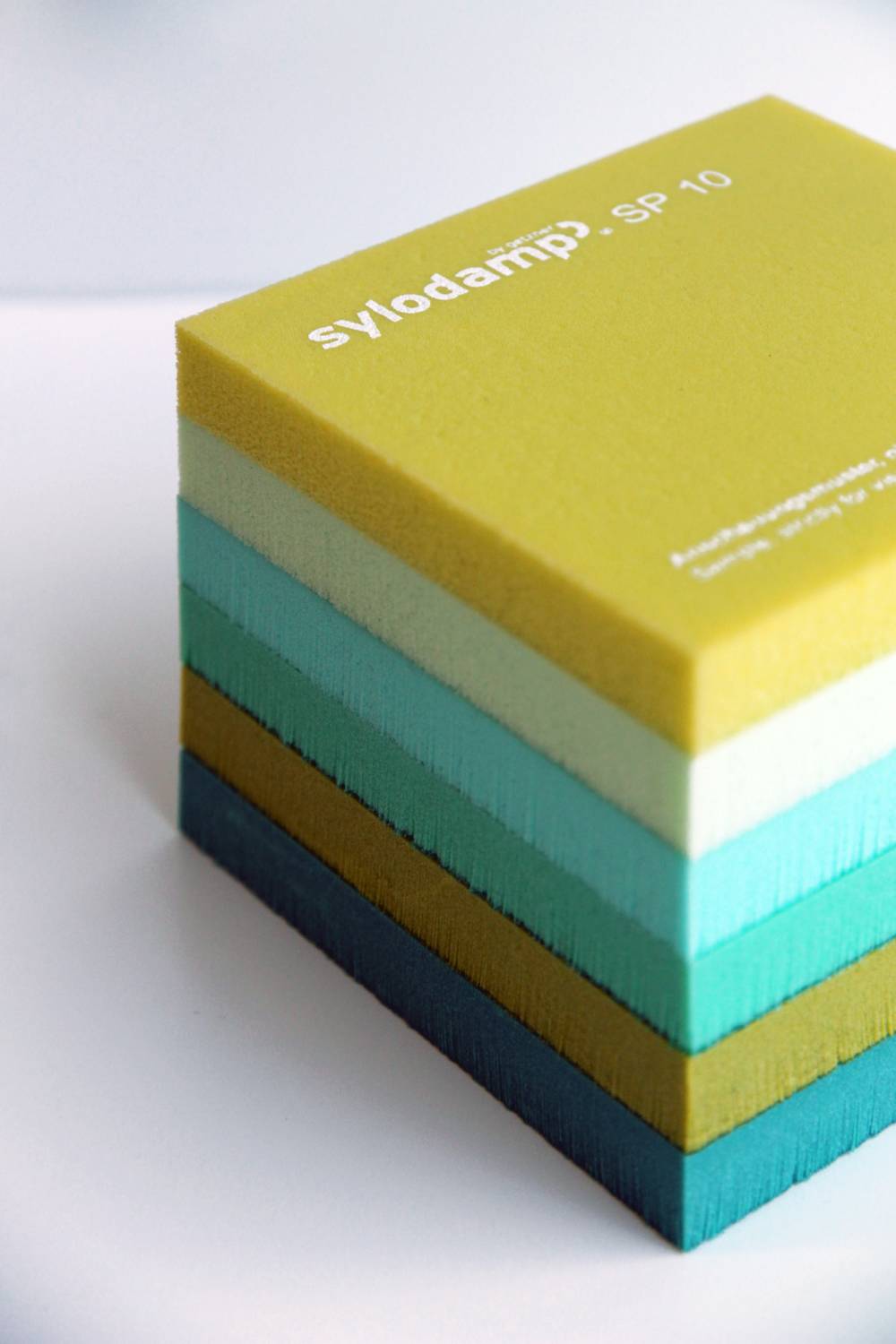

Sylodamp® - High-Damping Polyurethane Elastomer
Verified by manufacturer 4 days ago
SP 10
SP 10
Elastic material for high material damping.
Application
Areas of application:
- Specially developed to absorb the loads caused by impacts.
- Sylodamp® is not only a valuable damper for machines, but for people and its surroundings too.
- Typical applications can be found in situations where machinery, building structures, technical equipment or even people need to be protected.
Sylodamp® products:
- Full surface floating floors.
Description
Sylodamp® is a high-damping polyurethane elastomer that has been specially developed to absorb the loads caused by impacts. Sylodamp® can also be employed as an elastic component in conventional vibration insulation applications in which, in addition to permanent elasticity, a high level of damping of the elastomer is required.
With highly effective material damping, Sylodamp® ensures impressive impact insulation. To meet the widely varying requirements for impact load types, Getzner has developed a product range with six finely graduated material types. Sylodamp® is not only a valuable damper for machines, but for people and its surroundings too.
Features and benefits:
- Pronounced damping characteristics.
- Elastic polyurethane material.
- Mixed-cell pore structure.
- High energy absorption capacity.
- Static range of use of 0.005 N/mm² to 0.5 N/mm².
- Impact resilience of maximum 16%.
- Absorb impact load types.
- Ability to provide customer-specific solutions.
- Calculability of the impact.
- Long service life.
- Finely graded range for optimum system design.
Types available:
- SP 10.
- SP 30.
- SP 100.
- SP 300.
- SP 500.
- SSP 1000.
General information
Color | Yellow Green White Other |
Finish | Other |
Material | Polyurethane (PUR) |
Shape | Rectangle Other |
Length | 1000 mm 5000 mm Bespoke |
Width | 1500 mm Bespoke |
Height | 12.5 mm 25 mm |
Warranty description | Other |
Uniclass | |
CAWS | K11/25 Particleboard floating floor K11/27 Acoustic separating floor system K11/22 Plywood floating floor K11/295 Floating floor system K11/275 Acoustic separating floor system |
Specification data - Pad mountings
Material | Mixed-cell polyurethane elastomer. |
Size | 1.5 x 5.0 m.Guidance for specification option:
Other.Guidance for specification option: Other dimensions available by request. Consult manufacturer and insert requirements. |
Thickness | 12.5 mm.25 mm. |
Static load range | Up to 0.005 N/mm².Manufacturer guidanceApproximately 3%. |
Dynamic load range | 40–60%. |
Impact resistance | To EN ISO 8307, 13%. |
ShearModulus | Static: 0.057 N/mm². Manufacturer guidanceTo DIN ISO 1827. |
Tensile strength | Minimum tensile stress at rupture: 0.30 N/mm². Manufacturer guidanceTo DIN EN ISO 527-3/5/500. |
Abrasion resistance | To DIN ISO 4649, ≤4800 mm³. |
Static coefficient of friction | Steel: ≥0.5. Manufacturer guidanceGetzner Werkstoffe: dry, static friction. |
Volume | To DIN IEC 60093, >10¹²Ω·cm. Manufacturer guidanceSpecific volume resistivity. |
Thermal conductivity (maximum) | To DIN EN 12667, 0.039 W/mK. |
Operating temperature range | -30°C to 70°C. Guidance for specification option: Optimum damping range from 5°C to 40°C . |
Flammability | To EN ISO 11925-2, class E. |
Colour | Lemon yellow. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Austria |
Country of product manufacture | Austria |
Manufacturing plant location | |
Material | Polyurethane (PUR) |
Expected Life | Lifetime |
