SYL6AD & SYL10AD Acoustic Underlay - Resilient layer insulation

Verified by manufacturer 3 months ago

SYL6AD

Buildtec Acoustics Variant:

Resilient Layer Insulation - Under screed/ underfloor acoustic underlay.

Jump to:
07570 848 410 Website

Application

Resilient layer insulation - Acoustic underlay suitable for floors with floating screeds.

  • Can be used under parquet, laminate, carpet and ceramic tiles as well as under linoleum and PVC flooring.
  • Can be used as an isolator for plant and machinery.

Description

Resilient layer acoustic underlay designed for impact sound insulation.


Available in two versions: SYL6AD (6 mm) and SYL10AD (10 mm).


Features and benefits:

  • Noise reduction: The material absorbs impact sounds, making floors quieter.
  • Easy to install.
  • Includes a non-woven, non-stretch synthetic membrane on one side of panel for added protection. This tear-proof support allows the laying of the screed without the use of other protective layers.
  • Suitable for use with underfloor heating.
  • Impact sound reduction of up to 20 dB (SYL6AD) or 22 dB (SYL10AD).
  • High mechanical resistance.
  • High stability, and castor proof.
  • Contributes points towards LEED certification.
  • Ice-resistant.

General information

Color

Black

Finish

Textured

Material

Styrene-butadiene rubber (SBR)

Polyurethane

Shape

Rectangle

Length

8000 mm

Width

1200 mm

Height

6 mm

10 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/115 Wood laminate flooring

K21/10 Wood laminate flooring

K21/110 Wood flooring

M42/120 Mosaic parquet panel flooring

M40/5 Tiling to

M50/130 Carpet tiling

M40/110 Tiling to

M10/295 Floating construction (thin sheet impact sound insulation)

K21/111 Wood floating floor

K11/275 Acoustic separating floor system

K11/27 Acoustic separating floor system

M50/15 Carpet tiling

M10/40 Floating construction

Specification data - Resilient layer insulation

Material

SBR fibre.

Guidance for specification option:

Hot compacted using a polyurethane binder.

Density

730 kg/m³.

Thickness

6 mm.

Fire performance

Reaction to fire classification: Class E.

Sound insulation rating

Up to 17 dB sound insulation.

Weight

4.8 kg/m².

Dynamic stiffness

77 MN/m³.

Compression strength

≤0.2 mm.

Manufacturer guidance

Compressibility.

ThermalConductivity

0.12 W/m·K.

Impact sound reduction

To EN 12354-2, up to 17 dB.

Accessories

Not required.

Profyle.

Guidance for specification option:

Edging strip made of polyethylene.

Profyle flat.

Guidance for specification option:

Insulation strip made of adhesive and pre-cut polyethylene.

0.8–1.2 m per m² of floor surface.

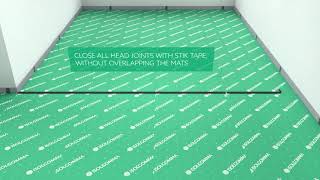

Stik HD.

Guidance for specification option:

High adhesion strength tape with superior ageing and weatherability performance.

0.1 m per m² of floor surface.

Manufacturer guidance

See manufacturer's literature for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Italy

Material

Styrene-butadiene rubber (SBR)

Polyurethane
