Description

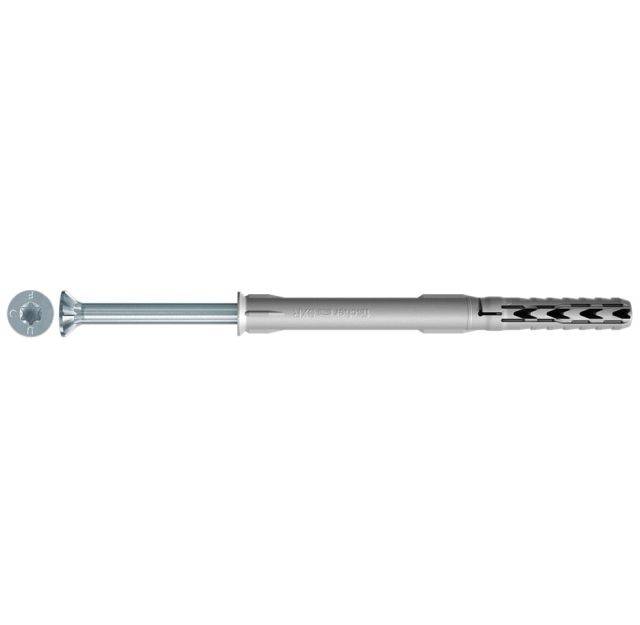

A4 (1.4401 [316] grade) austenitic stainless steel anchor for fixing aluminium rainscreen brackets to brick, block, concrete, masonry and sandstone.

The SXR fastener is 10 mm in diameter and has a 13 mm hexagon head with wide flange for greater load bearing, the sleeve only requires 50 mm embedment reducing drilling time.

Nylon plug design benefits include:

  • Special geometry of plug expansion element allows installation in multiple materials.
  • Fins: Stops the plus from rotating in the hole.
  • Knock-in protection: Prevention of premature expansion while installing.

Approved for installation into:

  • Concrete ≥C12/15.
  • Vertically perforated brick.
  • Hollow blocks made from lightweight concrete.
  • Perforated and solid sand-lime brick.
  • Aerated concrete.
  • Solid block made from light and normal weight concrete.
  • Solid brick.
  • Thermal insulation blocks.

Pre-installation:

To ensure the best performance of the product within the substrate discussion with SFS is recommended prior to calculating facade loads. Depending on the application a physical pull test on site may be required to confirm these loads.

Approvals:

SXR stainless steel anchor is ETA approved (ETA number 07/0121) and are CE marked. Technical performance in terms of tensile and shear are all documented in the ETA to enable the engineer to determine safe working loads in accordance with EuroNorms.

Fire Resistance test certification R90 for fastening of facade systems, see ETA.

General information
Material

Plug manufactured from high quality polyamide

Concrete anchor manufactured from A4 (1.4401 [316] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944

Stainless steel: Grade 1.4401 (316)

Uniclass 2015 Self-drilling screws (Pr_20_29_76_76)
Specification data
Product Reference

SXR - A4

Anchor length

10x60-FUS

10x80-FUS

10x100-FUS

Standard product features

Material:

  • Plug manufactured from high quality polyamide.
  • Concrete anchor manufactured from A4 (1.4401 [316] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944.
  • Stainless steel: Grade 1.4401 (316).

Product Options

Anchor length:

On-site pull out testing recommended.

Material:

Consult manufacturer for suitability with swimming pool applications.

Third party certifications
  • European Technical Approval: ETA 07/0121
