SXJ-0594 Triangle Gradient - Dispersing Pattern Film for Glass

Verified by manufacturer 3 days ago

Glass Films Europe Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

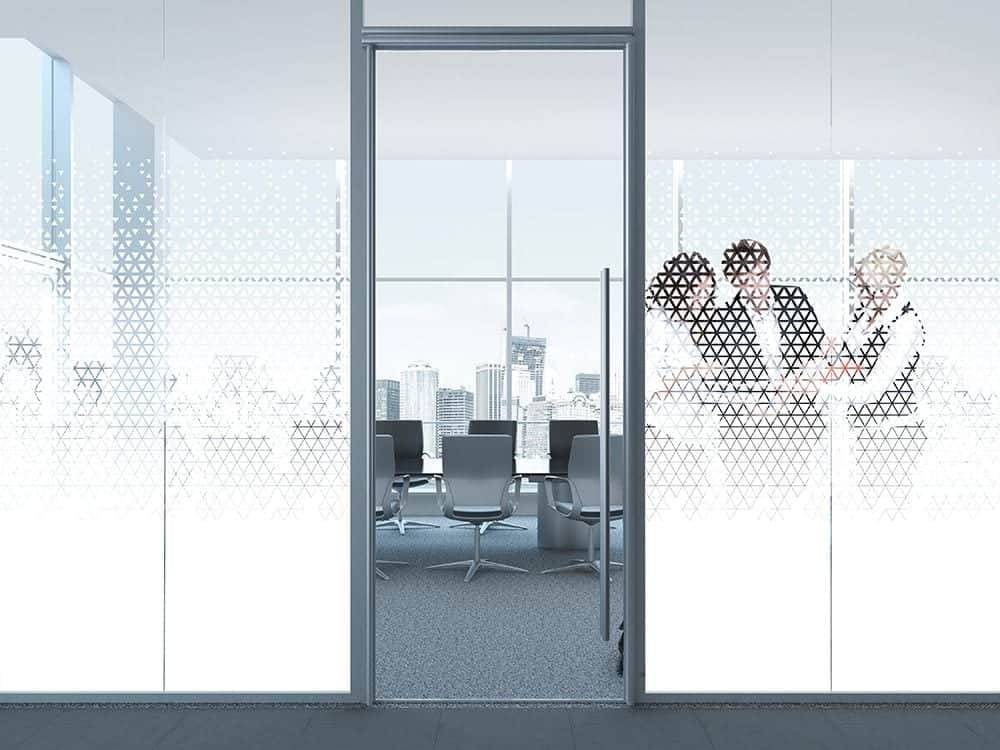

A fading gradient of white triangles dispersing up from the bottom, providing semi-privacy.

Jump to:
+44 (0)800 970 6366 Website

Application

Suitable for semi-privacy in offices and meeting rooms.

Description

A fading gradient of white triangles dispersing up from the bottom, providing semi-privacy.

The design can be extended at the bottom of this film by using SXJ-0567 Solid White Addon (specified separately).


SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.


Features and benefits:

  • For interior use.
  • Made from 100 µm-thick SOLYX iQ polyester.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Visible light transmission of 10–100%.
  • Supplied in roll widths of 71" (1803 mm).
  • Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.

General information

Color

White

Clear

Material

Polyester

Shape

Rectangle

Length

Bespoke

Width

1803 mm

Warranty description

Five year

Guidance for specification option:

Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details.

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/96 Manifestation

L40/630 Manifestation

L40/95 Window film

L40/610 Window film

Product range

Gradient Glass Films

Specification data - Plastics window films

Purpose

Decorative.

Privacy.

Ultra-violet (UV) protection.

Material

SOLYX iQ polyester.

Colour

Clear/ white.

Dimensions

Guidance for specification option:

Insert required length(s).

1803 mm (71") wide as standard.

100 µm thick.

Fire performance

To BS EN 13501-1:2018, Class B-s1, d0.

Design

White triangles dispersing up from the bottom.

Light

Transmittance: 10–100%; reflectance: 22%.

Solar Control

Absorption: 25%; rejection: 38%.

Ultraviolet (UV) resistance

99%.

Adhesive

Clear, pressure sensitive.

Guidance for specification option:

Supplied with a protective silicone liner.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Polyester

Manufacturing plant location

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

Third party certifications

BS EN 13501-1

BS EN 13501-1

Solyx Polyester Fire Certificate

Literature

Fire Ratings - Solyx & Simglas Decorative Glass Films

Fire Ratings - Solyx & Simglas Decorative Glass Films

Glass Films 2021 Catalogue

Glass Films 2021 Catalogue

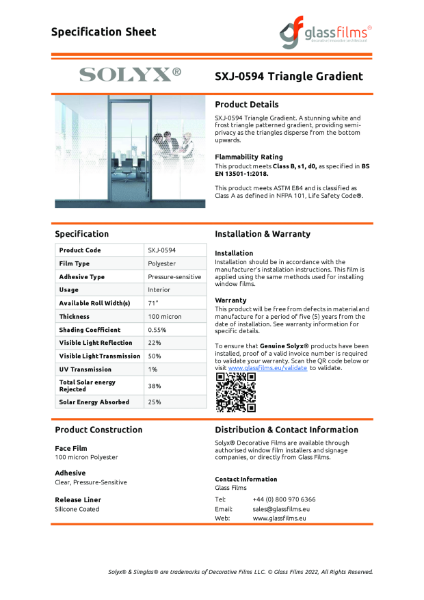

SXJ-0594 Triangle Gradient Specification Sheet

SXJ-0594 Triangle Gradient Specification Sheet
