SXEG-1026 Stained Glass Fish - Coloured Glass Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type

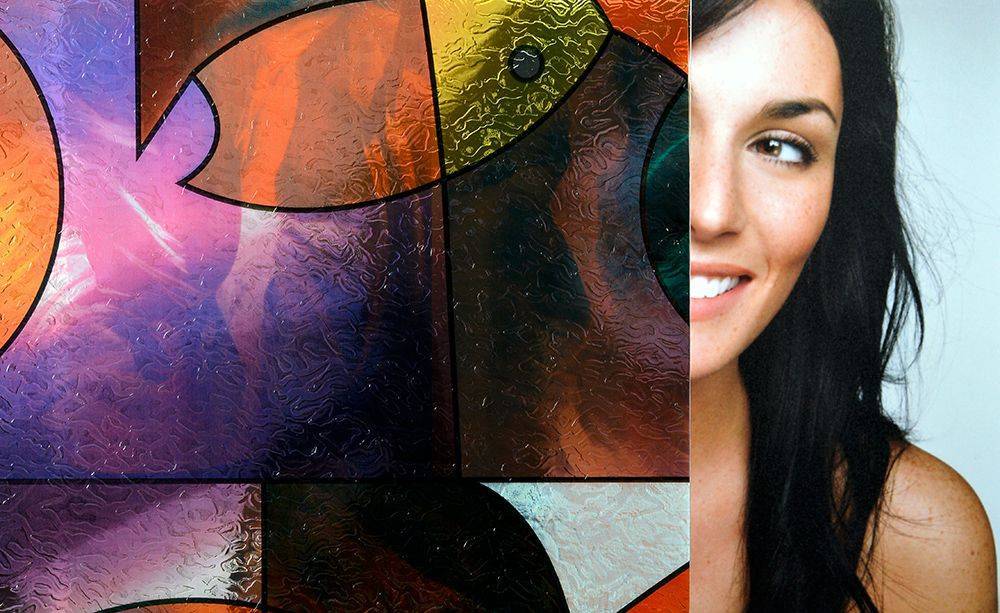

PVC film for glass simulating coloured, decorative stained glass with an abstract fish design.
Application
Recommended for application to interior and exterior glass (inside surface).
Description
PVC film for glass simulating coloured, decorative stained glass with an abstract fish design.
SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.
Features and benefits:
- For interior use.
- Made from 200 µm-thick durable PVC.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Visible light transmission of 17%.
- Supplied in roll widths of 36" (914 mm).
- Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.
General information
Color | Orange Purple |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | Bespoke |
Width | 914 mm |
Warranty description | Five year Guidance for specification option: Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details. |
Uniclass | |
CAWS | L40/96 Manifestation L40/630 Manifestation L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Decorative.Privacy. |
Material | PVC. |
Colour | Multi-coloured. |
Dimensions | Guidance for specification option: Insert required length(s). 914 mm (36") wide as standard. 200 µm thick (two ply x 100 µm). |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Design | Stained glass, abstract fish pattern. Guidance for specification option: Repeats every 686 mm (27") down the roll length. |
Light | Transmittance: 17%. |
Solar Control | Absorption: 42%; rejection: 49%. |
Ultraviolet (UV) resistance | 5%. |
Adhesive | Clear, pressure sensitive. Guidance for specification option: Supplied with a silicone liner. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyvinyl chloride (PVC) |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Vinyl Fire Certificate
Literature
Fire Ratings - Solyx & Simglas Decorative Glass Films
SXEG-1026 Stained Glass Fish Specification Sheet
