SXC-1418 Frosted Stripes Window Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
SXC-1418 Frosted is a striped polyester film.
Application
- Applied using the same methods used for installing window films.
- Horizontal Burn (Flame Spread) ASTM D-635 inch Less than 1.0 UL 94 Rating UL 94 Classification V-O Class A 0 -25 Flame Spread Index 0 -450 Smoke Developed Index.
Description
SXC-1418 Frosted is a striped polyester (PET) film with 1/4" (6.35 mm) wide stripes separated by 1/8" (12.70 mm) wide clear lines. Ideal for conference rooms or for office semi privacy. The Stripe Direction is down the length of the roll.
Features and benefits:
- For interior use.
- Polyester (PET) film.
- Pressure sensitive adhesive.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in a roll width of 60" (1524 mm).
General information
Color | Clear White |
Finish | Other Guidance for specification option: Polyester (PET) film with 1/4" (6.35 mm) wide stripes separated by 1/8" (12.70 mm) wide clear lines. |
Material | Polyester fibre (PET) |
Shape | Other Guidance for specification option: Roll. |
Width | 1524 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
Specification data - Plastics window films
Purpose | Decorative. |
Material | Polyester (PET). |
Colour | White striped Polyester (PET) film with a pattern of 1/4″ (6.35 mm) frosted stripe, and 1/8″ (12.70 mm) clear . |
Dimensions | 1524 mm.Guidance for specification option: Fixed roll width. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Light transmission | 74%. |
UV Transmission | 53%. |
Adhesive | Clear, pressure sensitive. |
Release Liner | Silicone coated. |
Film thickness | 38 µm PET. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester fibre (PET) |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature

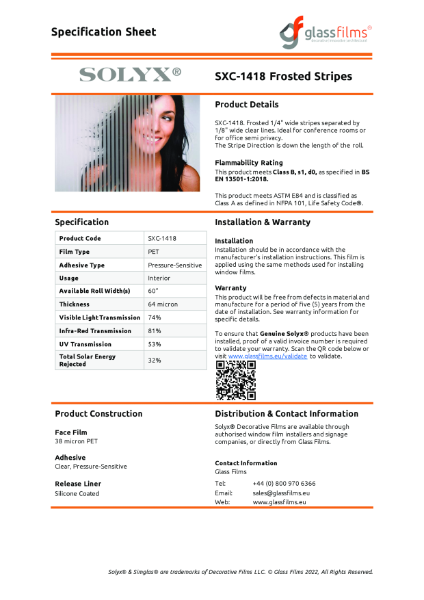

SXC-1418 Frosted Stripes Specification Sheet
