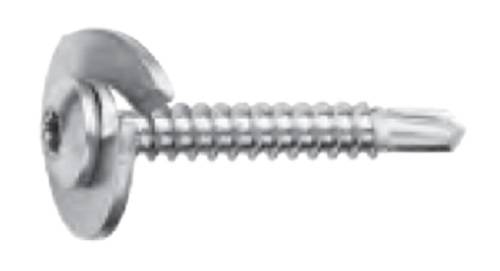

SX-D10-S19C9 Self Coring Composite Panel Fastener

Application

Fastening of single ply insulation roof panels in single operation.

Description

Self drilling fastener with innovative self coring washer to minimise interruption to insulating material.

General information

Color

Silver

Powder coated to suit project.

Other

Finish

Mill

Material

Stainless steel

WarrantyDescription

25 year

Up to 25 years - consult manufacturer.

Size

5.5 mm

Uniclass

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H43/120 Metal insulating sandwich panel

Specification data - Self-drilling screws Enhanced data

Material

Stainless steel A2.

Finish

Mill.

Head type

T25 recess dome.

Size

-

Diameter

5.5 mm.

Length

39 mm.

Washers

19 mm self coring.

Product Reference

SX-D10-S19C9 Self Coring Composite Panel Fastener
