SX-C378 Alternating Stripes Window Film

Verified by manufacturer 6 months ago

Glass Films Europe Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

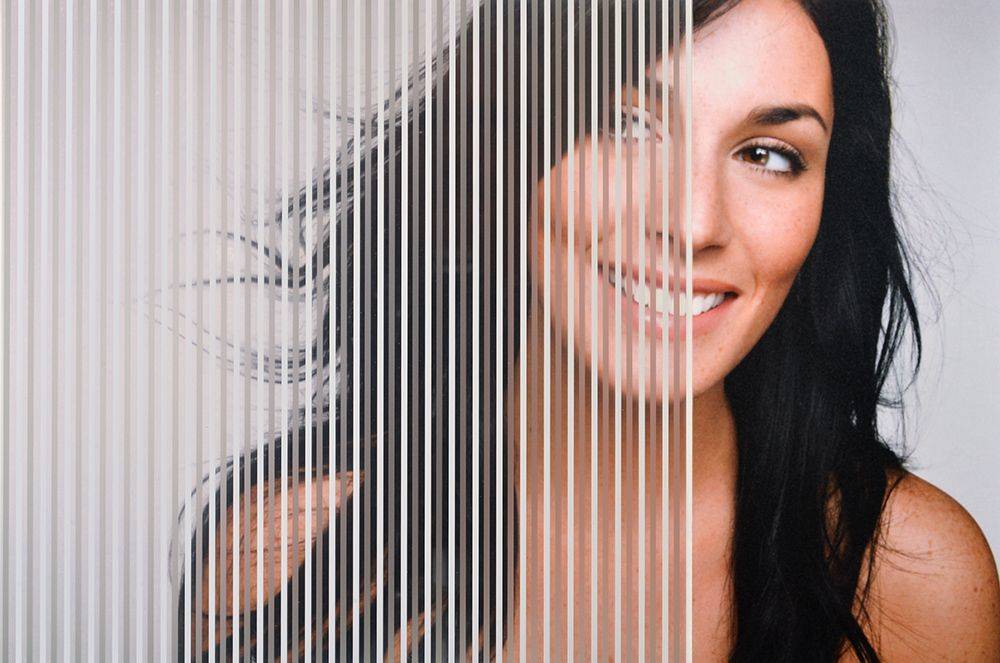

SX-C378 Alternating Stripes is a striped Polyester (PET) window film, alternating etch and translucent white stripes. Stripes are 3.5 mm wide with a 2 mm space.

Jump to:
+44 (0)800 970 6366 Website

Application

  • Applied using the same methods used for installing window films.
  • This product meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.

Description

SX-C378 Alternating Stripes is a striped Polyester (PET) window film, alternating etch and translucent white stripes. Stripes are 3.5 mm wide with a 2 mm space.


Features and benefits:

  • For interior use.
  • Polyester (PET) film.
  • Pressure sensitive adhesive.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Supplied in a roll width of 48" (1219.2 mm) and 60" (1524 mm).

General information

Color

Clear

White

Finish

Other

Guidance for specification option:

Striped Polyester (PET) film with a pattern of alternating etch and translucent stripes (3.5mm stripe and 2 mm space).

Material

Polyester

Shape

Other

Guidance for specification option:

Roll.

Width

1219.2 mm

1524 mm

Warranty description

Five year

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/630 Manifestation

L40/96 Manifestation

L40/95 Window film

L40/610 Window film

Specification data - Plastics window films

Purpose

Decorative.

Material

Polyester.

Colour

Striped Polyester (PET) film with a pattern of alternating etch and translucent stripes (3.5mm stripe and 2 mm space).

Dimensions

1219.2 mm.

1524 mm.

Fire performance

To BS EN 13501-1:2018, Class B-s1, d0.

Light transmission

66%.

UV Transmission

47%.

Adhesive

Clear, pressure sensitive.

Release Liner

Silicone coated.

Film thickness

64 µm PET.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Polyester

Manufacturing plant location

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

Third party certifications

BS EN 13501-1

BS EN 13501-1

Solyx Polyester Fire Certificate

Literature

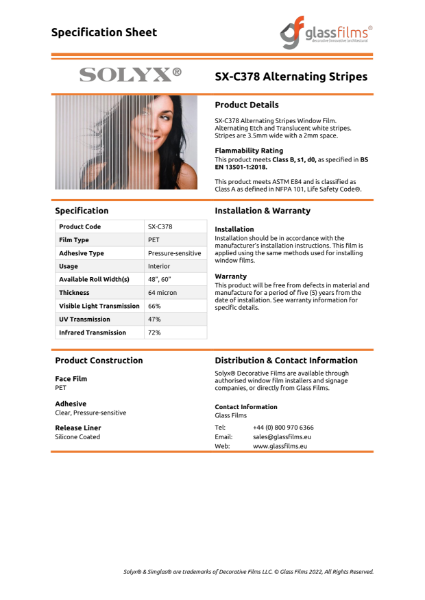

SX-C378 Alternating Stripes Specification Sheet

SX-C378 Alternating Stripes Specification Sheet
