SX-4801 Thin Grey Lines Window Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
SX-4801 Thin Grey Lines is a polyester film with glossy grey stripes.
Application
Applied using the same methods used for installing window films.
Description
SX-4801 Thin Grey Lines is a polyester film with glossy grey 3/16" (4.7625 mm) stripes and 1/16" (1.5875 mm) clear spacing running vertically along the length of the roll.
Features and benefits:
- For interior use.
- Polyester film.
- Pressure sensitive adhesive.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in a roll width of 60" (1524 mm).
- Meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.
General information
Color | Clear Grey |
Finish | Film |
Material | Polyester |
Shape | Other Guidance for specification option: Roll. |
Width | 1524 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
Specification data - Plastics window films
Purpose | Decorative. |
Material | Polyester. |
Colour | Glossy grey stripes and clear spacing. |
Dimensions | 1524 mm.Guidance for specification option: Fixed roll width. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Light transmission | 30%. |
UV Transmission | 45%. |
Adhesive | Clear pressure sensitive. |
Release Liner | Silicone coated. |
Film thickness | 50 µm polyester. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature

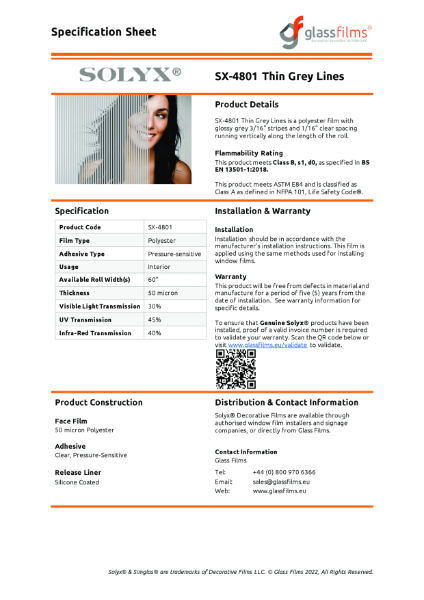

SX-4801 Thin Grey Lines Specification Sheet
