SX-3171 Moss Organic Cotton - Window Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
Patterned window film.
Application
For application to interior glass.
Description
SX-3171 Moss Organic Cotton consists of thin vertical and horizontal lines simulating woven cotton material.
The space between the coloured lines is lightly frosted, ideal for obscuring visibility while still allowing good light transmission.
SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.
Features and benefits:
- For interior use.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Made from 101 µm-thick PET Polyester.
- Supplied in fixed roll width of 59" (150 cm).
- Supplied with a silicone liner and pressure-sensitive adhesive.
General information
Color | Clear Green |
Finish | Woven |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Width | 1500 mm |
Warranty description | Five year Guidance for specification option: Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details. |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Decorative.Privacy. |
Material | PET Polyester. |
Colour | Clear; green tint. |
Dimensions | 1500 mm.Guidance for specification option: Fixed roll width. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0.Guidance for specification option: When applied to glass or plastic surfaces: Horizontal Burn (Flame Spread) ASTM D-635 inch Less than 1.0 UL 94 Rating UL Classification V-O Class A 0 -25 Flame Spread Index 0 -450. |
Light transmission | 41%. |
Ultraviolet (UV) resistance | 1%. Guidance for specification option: Infra-Red Transmission: 71%. |
Adhesive | Clear, pressure-sensitive. |
Release Liner | Silicone. |
Film thickness | 101 µm. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester fibre (PET) |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature

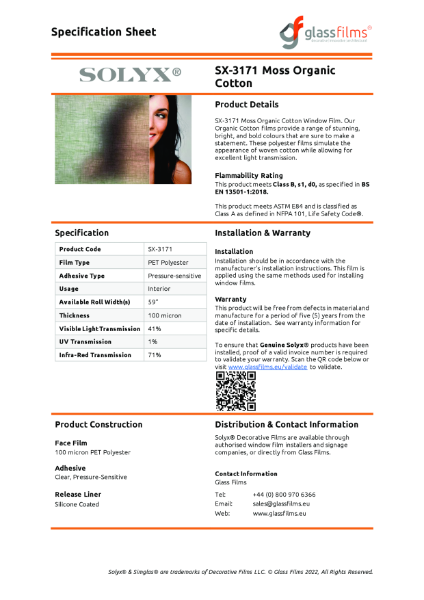

SX-3171 Moss Organic Cotton Specification Sheet
