SX-3008 Mini Bars Window Film
Verified by manufacturer 6 months ago
BS EN 13501-1
Certificate type
SX-3008 Mini Bars is a frosted, translucent, high-grade, embossed vinyl film.
Application
- Installed using the same methods for installing window films.
- Meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.
Description

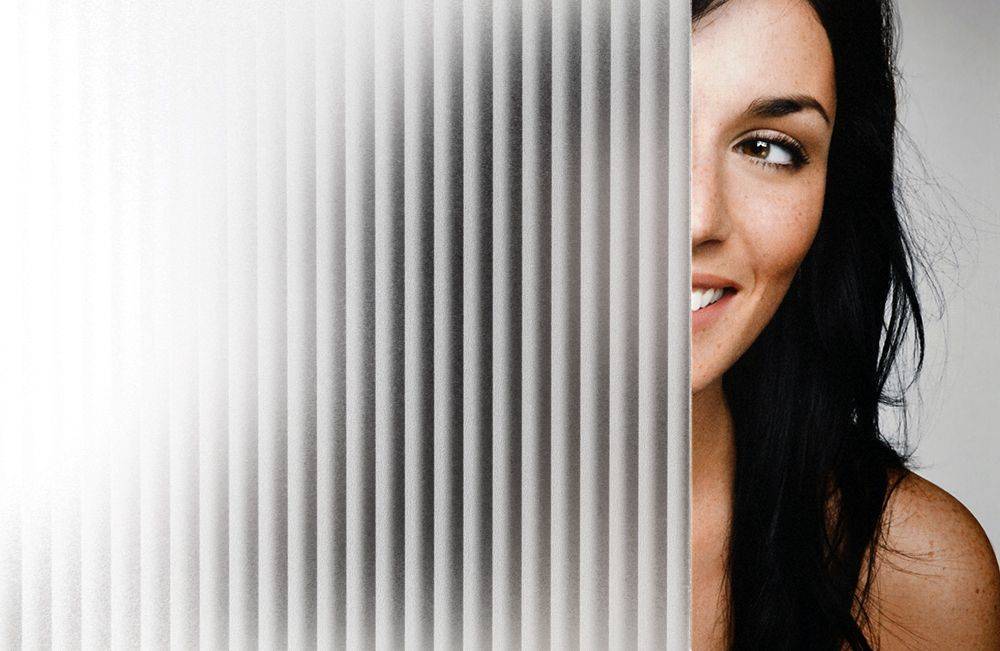

SX-3008 Mini Bars is a frosted, translucent, high-grade, embossed vinyl film that simulates small vertical mini blinds. This durable vinyl film has a decorative sandblasted surface and mini bar blind pattern with 10 mm gradient vertical stripes.
Features and benefits:
- For interior use.
- Vinyl film.
- Pressure sensitive adhesive.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in a roll width of 60" (1524 mm).
General information
Color | Clear |
Finish | Film |
Material | Vinyl |
Shape | Other Guidance for specification option: Roll |
Width | 1524 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
Specification data - Plastics window films
Purpose | Decorative. |
Material | Vinyl. |
Colour | Clear, frosted. |
Dimensions | 1524 mm. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Light transmission | 47%. |
UV Transmission | 1%. |
Solar Energy Rejected | 7%. |
Adhesive | Clear, pressure-sensitive. |
Release Liner | 50 µm silicone coated. |
Film thickness | 127 µm polymeric vinyl. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Vinyl |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Vinyl Fire Certificate
Literature

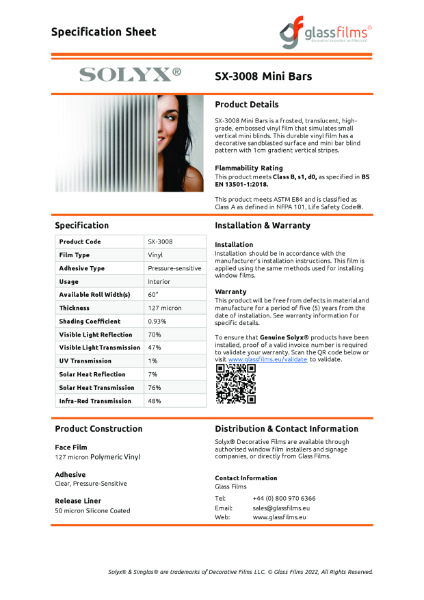

SX-3008 Mini Bars Specification Sheet
