SX-1513 Cut Glass Mosaic Window Film - Glass Film

Verified by manufacturer 5 months ago

Glass Films Europe Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Prismatic light scattering film, for obscuring direct visibility.

Jump to:
+44 (0)800 970 6366 Website

Application

For application to interior or exterior glass.

Description

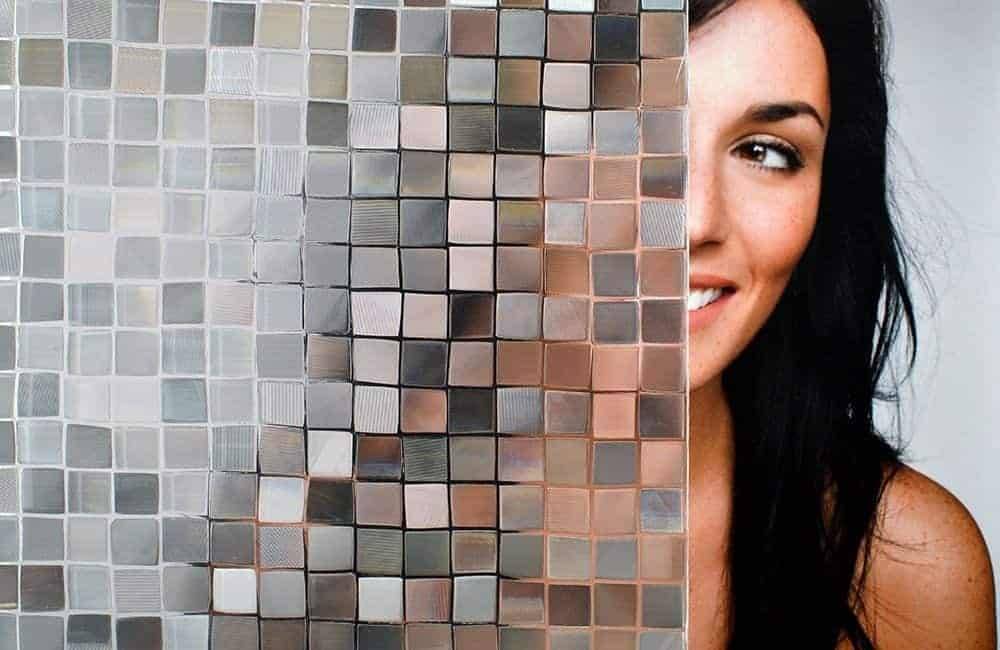

SX-1513 Cut Glass Mosaic is a translucent, colour-less embossed vinyl film.

Prism like facets scatter the light making this privacy film look like cut glass. The colours change as the light changes.

Privacy film suitable for obscuring direct visibility and allowing excellent light transmission.


SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty.

Please contact manufacturer to locate your nearest approved window film installer.


Features and Benefits:

  • Privacy film suitable for obscuring direct visibility.
  • Translucent vinyl glass film that is dimensionally stable.
  • Adhesive backed.
  • For interior or exterior use.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Supplied in fixed roll width of 48" (122 cm).
  • Made from 254 µm-thick vinyl.
  • Supplied with a synthetic liner and pressure-sensitive adhesive.

General information

Color

Clear

Finish

Embossed

Material

Vinyl

Shape

Rectangle

Width

1220 mm

Warranty description

Five year

Guidance for specification option:

Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details.

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

Product range

Textured Glass Films

Specification data - Plastics window films

Purpose

Decorative.

Privacy.

Material

Vinyl.

Colour

Clear.

Dimensions

1220 mm.

Fire performance

To BS EN 13501-1:2018, Class B-s1, d0.

Guidance for specification option:

The product was tested according to ASTM E84 and is classified as Class A, as defined in NFPA 101, Life Safety Code.

Light transmission

75%.

Ultraviolet (UV) resistance

7%.

Guidance for specification option:

Infra-Red transmission: 75%.

Adhesive

Clear, pressure-sensitive.

Release Liner

Transparent synthetic.

Film thickness

254 µm.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Vinyl

Manufacturing plant location

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

Third party certifications

BS EN 13501-1

BS EN 13501-1

Solyx Vinyl Fire Certificate
