Swisspearl AVERA - fibre cement panels

Swisspearl AVERA - fibre cement panels

Swiss Facades Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • Environmental Product Declaration (EPD) - BRE

    Environmental Product Declaration (EPD) - BRE

    Certificate type

Fibre cement cladding - marble stone natural finish.

Jump to:
+442879301548 www.swissfacades.com

Application

External cladding applications.

Description

Swisspearl Avera is manufactured using raw materials. They are blended using a dynamic manufacturing process that results in a raw and natural texture.


The finish of the Avera panel perfectly illustrates the authentic ingredients used to make it. The variation of texture and colour highlights the authenticity of the mineral material. The Avera panels are through-coloured, but unlike other product ranges, do not feature any additional colour pigment. This allows for a truly natural stone finish.

General information

Color

Blue

Cream

Green

Red

Finish

Smooth

Material

Fibre Cement

Shape

Rectangle

Size

8 x 3050 x 1250 mm

8 x 2510 x 1250 mm

WarrantyDescription

20 year

Uniclass

Pr_25_71_11_25 Fibre-reinforced cement boardsPrimary

CAWS

H92/120 Rainscreen cladding

H20/10 Sheet cladding

H20/155 Sheet cladding

Specification data - Fibre-reinforced cement boards Enhanced data

Standard

To BS EN 12467.

Fire rating

A2-s1,d0 according to EN 13501-1.

Weather resistance

To BS EN 12467, category A.

Bending strength

To BS EN 12467, Class 4.

Sheet size

-

Nominal thickness

8 mm.

Length

2510 mm.

3050 mm.

Width

1250 mm.

Edges

Square.

Colour

Avera AV 000.

Avera AV 010.

Avera AV 020.

Avera AV 030.

Avera AV 040.

Avera AV 050.

Avera AV 060.

Avera AV 070.

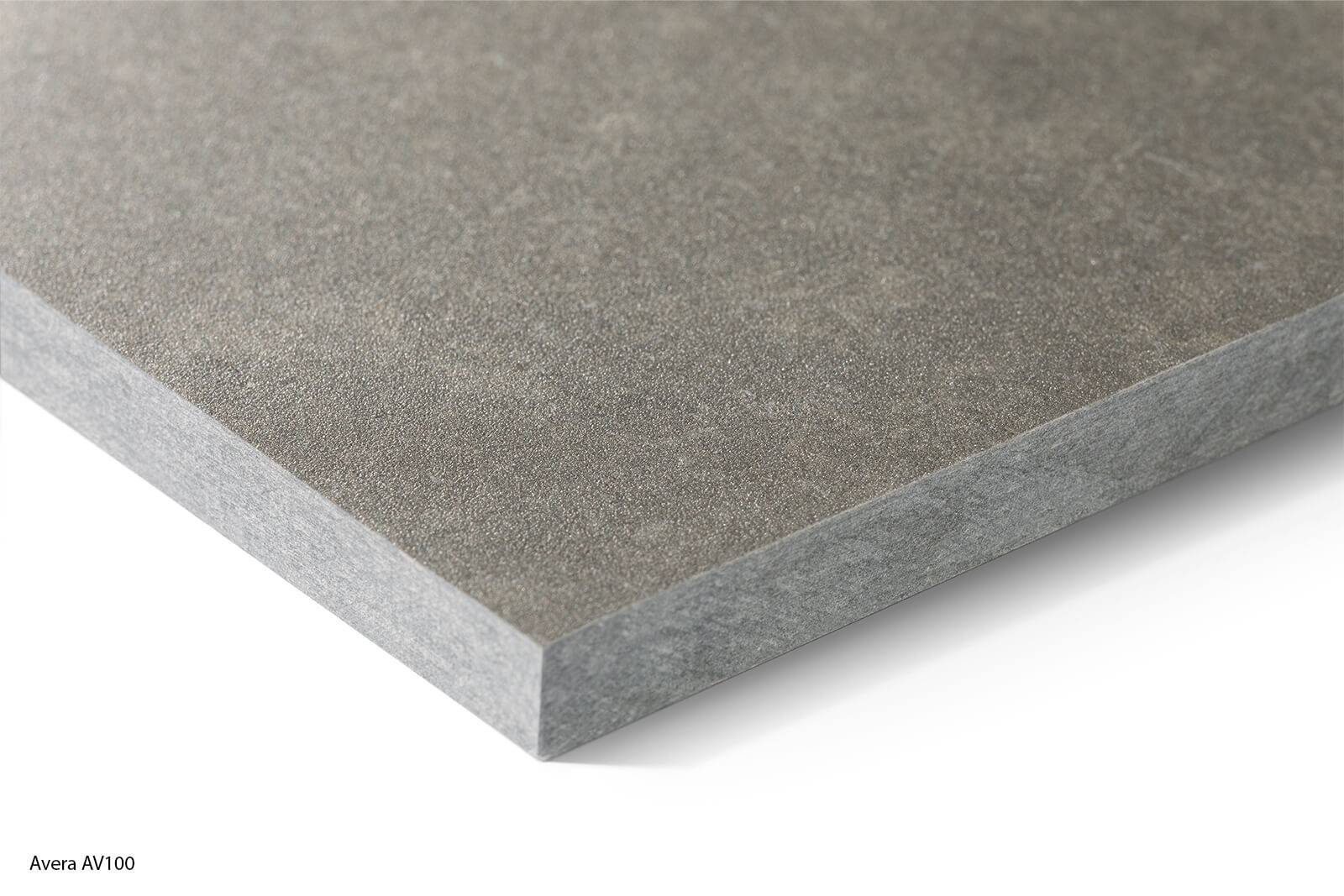

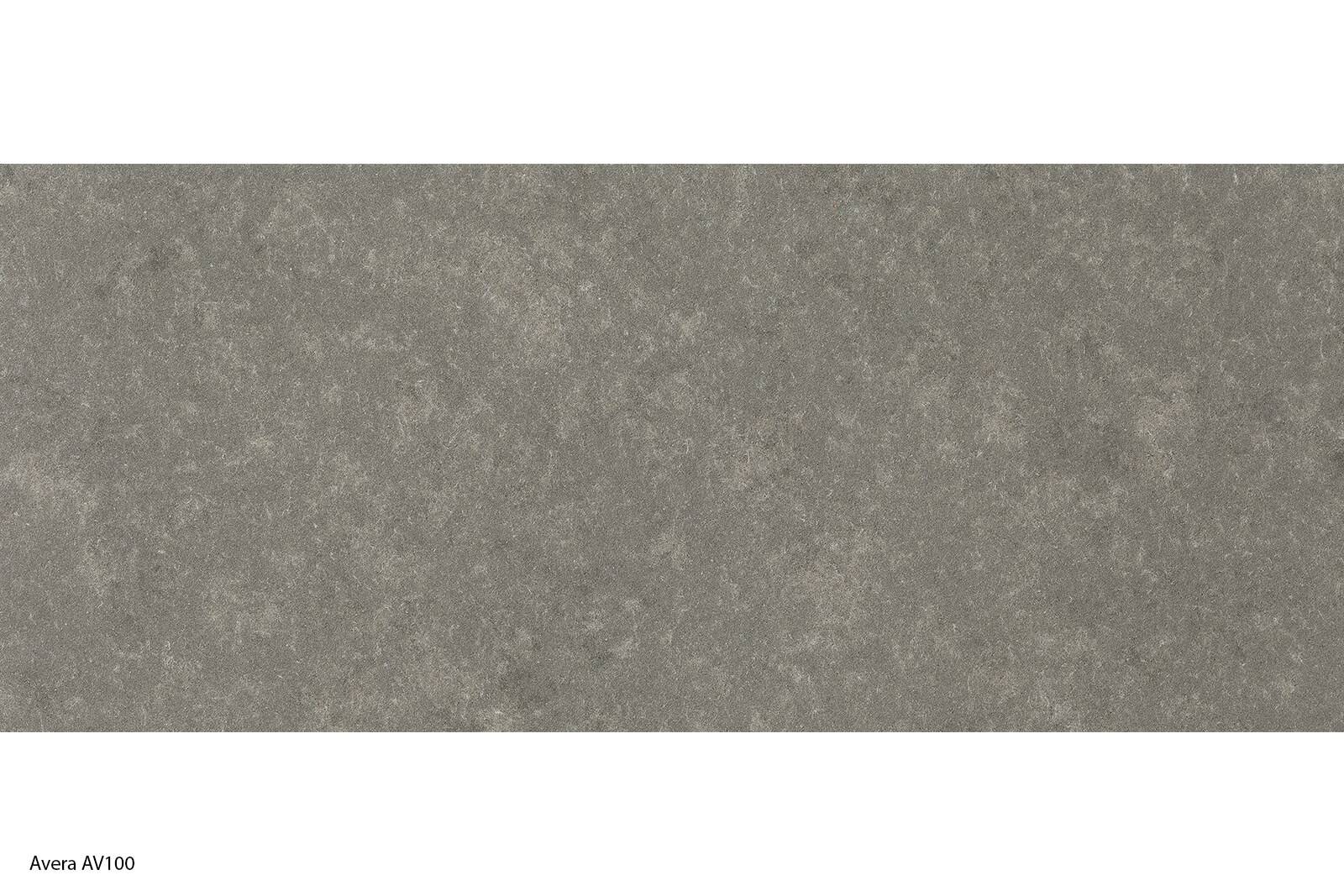

Avera AV 100.

Execution

Open joints

Chemical resistance

Similar to unreinforced concrete. Normal salted air environment (coastal areas) does not affect the functional performances of the panels.

Coating

Pure acrylate hot film coating on visible face. Water-resisting hot film coating back face.

BendingStrength

Design value: 8.3 MPa.

Apparent density

1.75 g/cm³.

CompressiveStrength

40 MPa.

YoungModulus

15 000 MPa.

Shrinkage

1.0 mm/m.

ThermalExpansionCoefficient

1.0E-05 1/K.

Moisture

Expansion: 0.5 mm/m. Content in equilibrium: 4 (M.-%)

Density

Area density: 17 kg/m².

Frost protection

Complies with category A in accordance to EN 12467.

Heat

Conductivity: 0.56 W/mK. Resistance: -40 to +80°C.

Lightfastness

Complies with ASTM G 155-05.

Water absorption

14.0 (M.-%).

Water vapour diffusion resistance

Conductivity: 0.00328 mg/m h Pa. Resistance: 220. Diffusion equivalent air layer thickness: 1.75 m.

Fasteners

Refer to manufacturer's literature for pull out load and shear load values.

None.

Swisspearl aluminium rivets, 18 mm.

To aluminium profiles.

Swisspearl aluminium rivets, 24 mm.

To aluminium profiles.

Swisspearl stainless steel rivets, 23 mm.

To steel profiles.

Swisspearl stainless steel rivets, 18 mm.

To steel profiles.

Show more

Environmental information

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Embodied carbon

GWP is based on 1 Tonne of material.

Recyclability

100%

Recycled content

100 %
