Surf Cubicles

Name: Surf Cubicles
Brand: 6RYewhH5YjvmSZw3DUWqJB
SKU: pRmRxqKaBk73FBkSEWCWYV

Venesta Washroom Systems Ltd

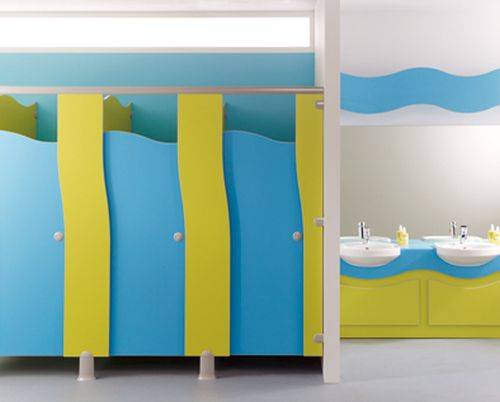

Frameless cubicles for schools.

Jump to:

+44 (0)1474 353333 www.venesta.co.uk

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product Reference

Surf HPL

High pressure laminate covered chipboard panels.

Surf MFC

Melamine faced chipboard panels.

Surf SGL

Solid grade laminate panels.

Size

Height

Size C

1300 mm. 1450 mm from FFL to curved edge.

Size D

1500 mm. 1650 mm from FFL to curved edge.

Depth

Maximum 2000 mm from face of back wall or rear ducting.

Colour

Panels

Pilasters

Doors

Hinges

Dark grey

Light grey

Fittings

Material/ Colour

ABS, colour

Insert colour from Venesta standard colour range.

Dark grey powder coated aluminium

Light grey powder coated aluminium

Catches

Indicator bolt and keep

With concealed fixings and emergency release.

Magnetic catch

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

Headrail: Aluminium with insert at door opening. Powder coated to match fittings.

Pedestals: Adjustable to pilasters and partitions.

Floor clearance: 150 mm.

Cleats. With concealed fixings.

Product Options

Product reference:

– Surf HPL:

Board/ panel: 660 kg/m³ grade moisture resistant chipboard, faced each side with high pressure laminate (HPL).

Thickness: 18 mm.

Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

– Surf MFC:

Board/ panel: Melamine-faced, 660 kg/m³ grade, moisture resistant chipboard.

Thickness: 18 mm.

Edge treatment: 3 mm thick matching or contrasting PVC with exposed corners radiused.

– Surf SGL:

Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.

Thickness: 13 mm.

Edge treatment: All edges radiused and polished (black).

Height:

1950 mm overall from FFL, with reduce height, shaped doors and full height shaped partition.

Colour:

Consult Venesta Washroom Systems for details of the standard colour range.

Product Reference	Surf HPL High pressure laminate covered chipboard panels. Surf MFC Melamine faced chipboard panels. Surf SGL Solid grade laminate panels.
Size	-
Height	Size C 1300 mm. 1450 mm from FFL to curved edge. Size D 1500 mm. 1650 mm from FFL to curved edge.
Depth	Maximum 2000 mm from face of back wall or rear ducting.
Colour	-
Panels	-
Pilasters	-
Doors	-
Hinges	Dark grey Light grey
Fittings	-
Material/ Colour	ABS, colour Insert colour from Venesta standard colour range. Dark grey powder coated aluminium Light grey powder coated aluminium
Catches	Indicator bolt and keep With concealed fixings and emergency release. Magnetic catch
Accessories	Document M compliant grab rails and door pulls Venesta coat hook Venesta toilet roll holder
