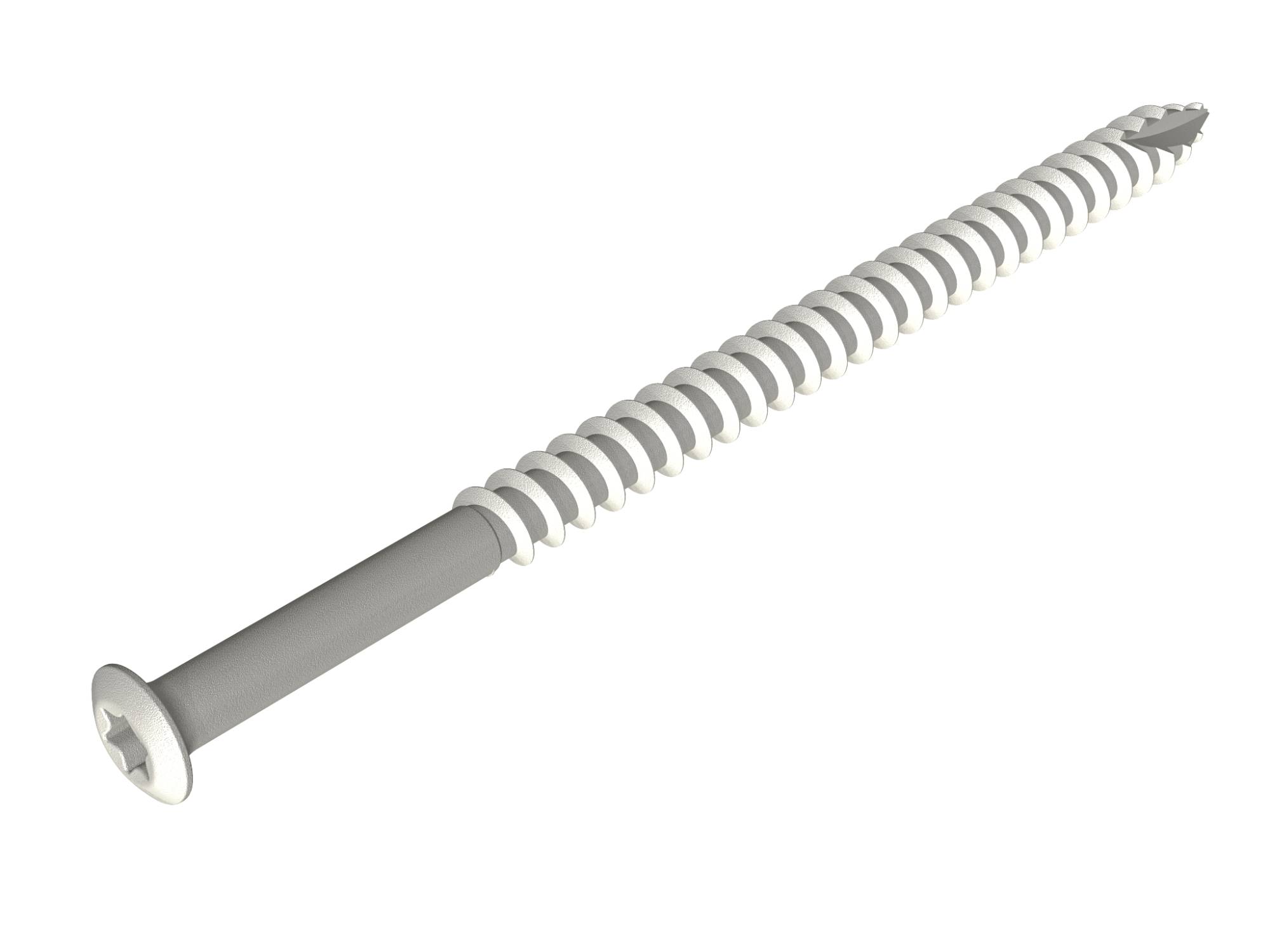

SureFast SF-RS-SSA4-6.1 flat roofing concrete screw

Verified by manufacturer 1 month ago

Fixfast Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • ASTM (Canada)

    ASTM (Canada)

    Certificate type

A4 (316 Grade) Stainless steel fasteners for installing flat roofing systems, components and trims to concrete.

Jump to:
+44 (0)1732 882387 Website

Application

  • For mechanically fixing single-ply and flat roofing systems to concrete decks in combination with appropriate SureFast® components.
  • For mechanically fixing flat roofing accessories and trims to concrete.
  • Cast in-situ concrete: 100 mm minimum thickness, 100 mm minimum edge distance, 25 mm embedment.
  • Preformed concrete components: 40 mm minimum thickness, 70 mm minimum edge distance, 25 mm embedment.

Description

A4 (316 Grade) Stainless steel concrete fasteners for flat roofing.


Features and benefits:

  • Warranted fasteners with £20 million UK insurance cover.
  • High resistance to corrosion – suitable for use in marine environments.
  • Optimized thread design for excellent pull-out performance and resistance to unwinding.
  • Compatible with the SureFast® range of tube washers and pressure plates.
  • Purpose designed and precision manufactured by Fixfast.

General information

Color

Silver

Finish

Coated

Material

Stainless steel

Guidance for specification option:

1.4401 stainless steel (316M), with carbon steel case hardened welded point

Length

50 mm

80 mm

120 mm

Width

6.1 mm

Warranty description

40 year

Guidance for specification option:

Up to 40 years, consult manufacturer for details.

Uniclass

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

J42/10 Warm deck roof covering

J42/12 Inverted roof covering

J42/355 Mechanical fasteners, washers, pressure plates, etc.

J41/350 Mechanical fasteners for single-layer reinforced bitumen membranes

J41/12 Reinforced bitumen membrane cold deck roof covering

J41/10 Reinforced bitumen membrane warm deck roof covering

J41/14 Reinforced bitumen membrane inverted roof covering

Product range

Fastener Systems

Specification data - Self-drilling screws

Standard

Independently tested to ETAG 006.

Material

1.4401 stainless steel (316M) with carbon steel case hardened welded point.

Finish

Organic.

Head type

Oval, TX25 recess.

Size

-

Diameter

6.1 mm.

Length

50 mm.

80 mm.

120 mm.

Performance:

Pull-out values (axial load resistance): 3.19-3.61 kN.

Guidance for specification option:

Characteristic value.

Manufacturer guidance

Product dependent. Consult literature for details.

Durability

Up to 40 years corrosion resistance.

Head diameter

9 mm.

Sustainability data

Contains Red List materials

No

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA: Certificate 15/0406

ASTM (Canada)

ASTM (Canada)

UKTA: F6438
