Sure-flow Outlets And Vents With Atlantic EC16 Flanges
Description

Stainless steel rainwater outlets, roof vents and accessories with integrated flanges in Atlantic EC16 membrane.

  • To be used only as part of Bailey Atlantic EC16 single ply waterproofing system.
  • Stainless steel body provides optimum corrosion resistance.
  • Integrated flanges allow watertight seal to Atlantic EC16 waterproofing membrane.
  • Supplier offers system design and flat roof drainage calculations, including dimensions and number of outlets, calculated to BS EN 12056.

General information
Material

Stainless steel with integrated flange in Atlantic EC16 single ply membrane and rubber 'O' ring seal

Uniclass 2015
Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS

J41/485 Roof ventilators

Q37/450 Roof drainage outlets

R10/110 Gravity rainwater drainage system

R10/26 Rainwater outlets

R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets
Product Reference

Sure-flow Outlets And Vents With Atlantic EC16 Flanges

Rainwater outlets

Not required

D-518-16, Sure-flow parapet outlet

For parapet/ through wall drainage. 110mm (ext dia 110 mm (external diameter) spigot.

D-530-16-50, Sure-flow vertical spigot outlet

50 mm (external diameter) spigot.

D-530-16-62, Sure-flow vertical spigot outlet

62 mm (external diameter) spigot.

D-530-16-70, Sure-flow vertical spigot outlet

70 mm (external diameter) spigot.

D-530-16-75, Sure-flow vertical spigot outlet

75 mm (external diameter) spigot.

D-530-16-80, Sure-flow vertical spigot outlet

80 mm (external diameter) spigot.

D-530-16-95, Sure-flow vertical spigot outlet

95 mm (external diameter) spigot.

D-530-16-110, Sure-flow vertical spigot outlet

110 mm (external diameter) spigot.

D-530-16-145, Sure-flow vertical spigot outlet

145 mm (external diameter) spigot.

D-530-16-160, Sure-flow vertical spigot outlet

160 mm (external diameter) spigot.

Roof ventilators

Not required

D-512-16, Sure-flow roof vent

110 mm diameter. Special order.

Leaf guards

Not required

F-631-L, Leaf guard

For Sure-flow vertical spigot outlet.

F-632-LP, Parapet leaf guard

For Sure-flow parapet outlet.

F-633-LC, Cylindrical leaf guard

For Sure-flow vertical spigot outlet on ballasted or green roofs. Special order.

F-634-LB, Balcony leaf guard

For Sure-flow vertical spigot outlet on terrace or balcony roofs. Special order.

Standard product features

Material:

Stainless steel with integrated flange in Atlantic EC16 single ply membrane and rubber 'O' ring seal.

Product Options

Rainwater outlets:

- Vertical spigot:

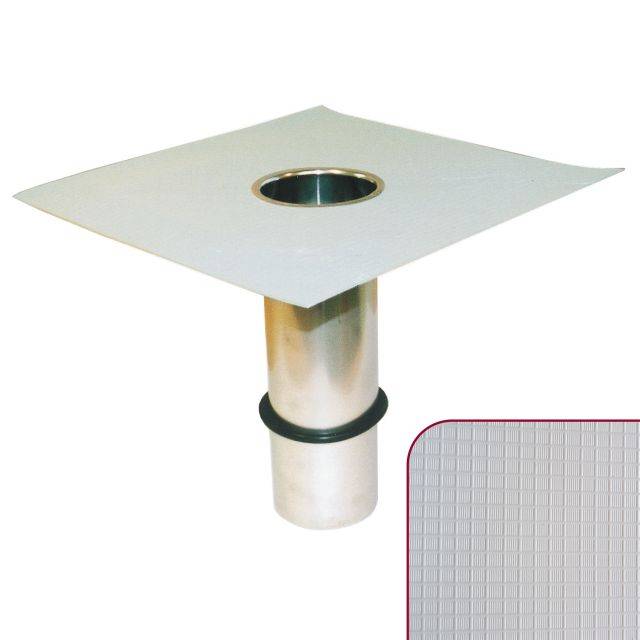

  • Integrated Atlantic EC16 flange allows watertight seal to Atlantic EC16 waterproofing membranes.
  • 50 mm: To fit inside 65 mm (external diameter) socketless downpipe using 'O' ring seal supplied, or 50 mm (external diameter) socketed downpipe without 'O' ring. Special order.
  • 62 mm: To fit inside 75 mm (external diameter) socketless downpipe, using 'O' ring seal supplied.
  • 70 mm: Special size for unusual or difficult applications. Special order.
  • 75 mm: To fit 75 mm (external diameter) socketed downpipe, without using 'O' ring.
  • 80 mm: For refurbishment projects where existing outlet is to be retained. Fits inside 100 mm outlet, using 'O' ring seal supplied.
  • 95 mm: To fit inside 110 mm (external diameter) socketless downpipe, using 'O' ring seal supplied.
  • 110 mm: To fit 110 mm (external diameter) socketed downpipe, without using 'O' ring.
  • 145 mm: To fit inside 160 mm (external diameter) socketless downpipe using 'O' ring seal supplied.
  • 160 mm: To fit 160 mm (external diameter) socketed downpipe, without using 'O' ring.

- Parapet outlet:

  • 110 mm (external diameter) horizontal spigot for parapet or through wall drainage. Spigot can be connected directly to socketed 110 mm (external diameter) downpipe or left free draining into a hopper.
  • Integrated Atlantic EC16 flange allows watertight seal to Atlantic EC16 waterproofing membranes.

Roof ventilators:

  • Twin skin stainless steel roof vent, reduces condensation risk.
  • Integrated Atlantic EC16 flange allows watertight seal to Atlantic EC16 waterproofing membranes.
  • Adjustable, enabling accommodation of vent pipes up to 600 mm high.

Leaf guards:

Stainless steel leaf guards for vertical spigot and parapet outlets on flat roofs, ballasted roofs, green roofs, terraces or balconies.
