Laminated acoustic barriers with Class 0 foil facing.
Highly effective, acoustic barriers for suspended ceilings, partitions, enclosures, ductwork and baffles.

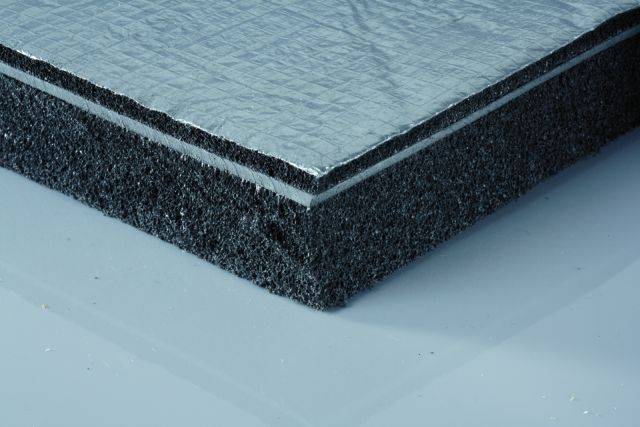

SuperLag FL laminates consist of two isolating foam layers that encapsulate a heavy mass absorptive layer, with an outer foil facing which achieves Class 0 surface spread of flame. As composites, the barriers do not require separate isolation layers.
SuperLag FL laminates can be adhered to the substrate, either using a self-adhesive backing or contact adhesive, or mechanically fixed with pins and self-locking washers.
12 mm foam/ 5 kg/m² mass barrier/ 6 mm foam
25 mm foam/ 5 kg/m² mass barrier/ 6 mm foam
12 mm foam/ 10 kg/m² mass barrier/ 6 mm foam
25 mm foam/ 10 kg/m² mass barrier/ 6 mm foam
Self adhesive backing.
Brush applied adhesive.
Perforated-based pins with washers
Self-adhesive based pins with washers
Non-flammable synthetic rubber contact adhesive.
Standard product features
Thermal conductivity (to BS 4745:1990):
– SuperLag FL-B:
– SuperLag FL-L:
