Superglass Superwhite 34 Blown Insulation – Party Walls - Party Wall Insulation

Verified by manufacturer 1 month ago

Superglass Insulation Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • CE Marking

    Certificate type

  • DoP

    DoP

    Certificate type

Superglass Superwhite 34 is a non-combustible glass mineral wool blown insulation for use as a full fill solution in new build masonry party/separating walls.

Jump to:
+44 (0)808 1645 134 Website

Application

Superglass Superwhite 34 is designed to provide thermal and acoustic insulation and help provide a zero u-value within new build masonry party or separating walls as described in related building regulations. The product may be used as a component in several Robust Details solutions including proprietary systems E-WM-33 and E-WM-35.


Superwhite 34 can also be used as a full fill solution for external masonry cavity walls.

Description

Superglass Superwhite 34 is a non-combustible glass mineral wool blown wall insulation for use as a full fill solution for new build external masonry party/separating walls.


Thermal Conductivity:

Declared thermal conductivity (lambda (λ) value) of 0.034W/mK.


Fire Classification:

Deemed non-combustible with a fire classification of Euroclass A1 (the highest possible rating) when tested to BS EN 13501-1 Reaction to Fire.


Installation:

Superglass Superwhite 34 is installed by a network of approved technicians after the walls are built and the building is watertight.


Vapour Resistivity

The product has a nominal vapour resistivity of 5 MN·s/g·m.


Environmental credentials.

  • Manufactured in accordance with ISO 14001 - Environmental Management Systems (EMS). Certificate number: EMS 646508.
  • Contains no ozone-depleting substances or greenhouse gases. For more information, please refer to the Environmental Product Declaration (EPD).
  • Made from up to 84% recycled glass.
  • Generic BRE Green Guide Rating of A+.
  • Our products and their pallets are wrapped in low-density polyethylene (LDPE4) plastic, which contains a minimum 30% recycled material and is fully recyclable. Before recycling, please consult your local authority for guidance.


Standards and Approvals.

  • BS EN 14064-1: 2010 for In-situ formed loose-fill mineral wool products.
  • BS EN 13172: 2012 Thermal insulation products – Evaluation of conformity.
  • BS EN ISO 9001 - Quality Management Systems (QMS). Certificate number: FM 02264.


Certification:

  • UKCA certified to BS EN 14064-1: 2010. Certificate Number: 0086 CPR 742703.
  • CE marked to EN 14064-1: 2010. Certificate Number: 0402-CPR-SC0003-13.


General information

Color

White

Material

Glass mineral wool

Glass Fibre

Mineral wool

Warranty description

Ten year

Uniclass

Pr_25_31_48_48 Loose-fill mineral wool fibre insulationPrimary
Ss_32_10_10_40 Injected and blown insulation systems

Pr_25_57_06/310 Insulation products generally

Pr_25_31_48_34 Granular mineral wool insulation
Pr_25_57_06_34 Glass fibre insulation
Pr_25_57_06_53 Mineral wool insulation

CAWS

H31/46 Acoustic insulation

F30/10 Full fill cavity insulation

F30/155 Partial fill cavity insulation

P11/50 Injected cavity fill

J31/26 Thermal insulation

F30/150 Full fill cavity insulation

P11/220 Mineral wool cavity fill

H31/254 Acoustic insulation

Product range

Masonry Party/Separating Wall
Blown Insulation

Specification data - Loose-fill mineral wool fibre insulation

Standard

BS EN 14064-1.

Guidance for specification option:

Manufactured in accordance with:

  • BS EN 14064-1: 2010 for In-situ formed loose-fill mineral wool products.
  • BS EN 13172: 2012 Thermal insulation products - Evaluation of conformity.


All Superglass products are manufactured in accordance with BS EN ISO 9001:2015 - Quality Management Systems (QMS).

Third-party certification

BRE Green Guide Rating of A+.

Thermal conductivity (maximum)

0.034 W/m·K.

Fire performance

Reaction to fire classification of A1, as defined in BS EN 13501-1.

Guidance for specification option:

All Superglass products are deemed non-combustible and have a fire classification of A1 when tested to BS EN 13501-1 reaction to fire.

Recycled content

Up to 84%.

Guidance for specification option:

Manufactured from up to 84% recycled glass, which would otherwise go to landfill.

Execution

-

Manufacturer guidance

Minimum cavity width: 100 mm.

Block type and density: Lightweight aggregate – 1350 to 1600 (kg/m³).

Green guide rating

A+.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass mineral wool

Glass Fibre

Mineral wool

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.22 kg CO₂ eq/kg

Manufacturer guidance

Please see product EPD.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

84 %

Expected Life

Lifetime

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration (EPD) – Blowing Mineral Wool Insulation

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management System ISO 9001:2015

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA Certificate - Blown Glass Mineral Wool Insulation

CE Marking

CE Marking

CE Certificate - Blown Glass Mineral Wool Insulation

DoP

DoP

Declaration of Performance (DoP) - Superwhite 34 Blown - UKCA

Literature

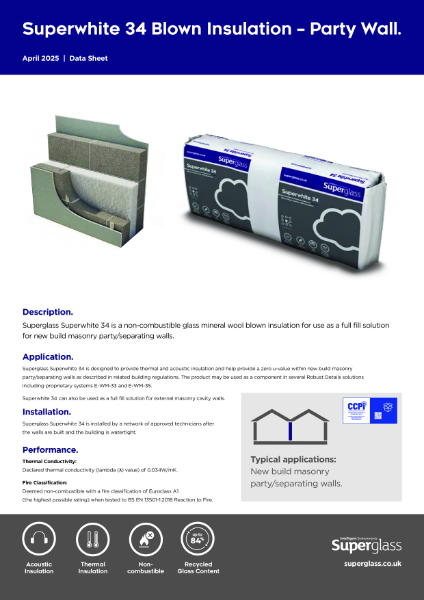

Superglass Superwhite 34 Blown Insulation - Party Wall - Datasheet

Superglass Superwhite 34 Blown Insulation - Party Wall - Datasheet

Insulation Solutions Guide

Insulation Solutions Guide

Robust Details Solution E-WM-33

Robust Details Solution E-WM-33

Robust Details Solution E-WM-35

Robust Details Solution E-WM-35
