Sports fence system.
Super Rebound 8L is a further development of Zaun’s Duo Sports. Designed for areas that receive high usage or where sport is taken seriously. It has been developed to offer a more attractive, practical and community friendly alternative to wooden rebound boards. Using twin horizontal 6 mm wires, the lower 1.2 m of the fence has a 50 x 66.6 mm mesh pattern. This robust mesh acts like a wooden rebound board in terms of rebound quality but has many advantages over wooden boards.
Fixings every 200 mm and rubber inserts at each fixing virtually eliminate rattle during play. Clamp bars covering panel ends ensures a safe playing surface with no sharp edges.
Features and benefits:
Galvanized and polyester powder coated
Q40/125 Open mesh steel panel general purpose fencing
Q40/27 Open mesh steel panel fencing
Q40/30 Proprietary fencing
Q40/430 Proprietary fencing
Super Rebound 8L
1.2–3.68 m, insert requirements.
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.
Standard product features
Galvanized and polyester powder coated.
Super Rebound 6L mesh comprising 50 x 66.6 mm mesh with single 6 mm vertical wires at 50 mm centres and dual 8 mm horizontal wires at 66.6 mm centres.
Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 3025 mm centres.
Post to panel fixing:

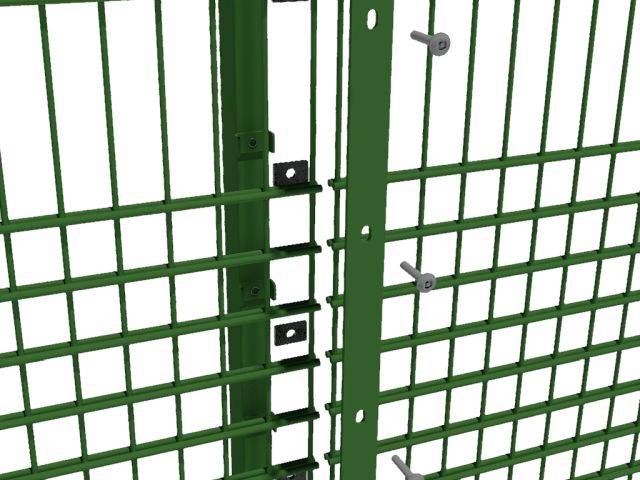

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 200 mm centres with EPDM inserts. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Framed in a 50 x 50 mm RHS with Zaun Super Rebound mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
