Application

  • Civic and public sector.
  • Sport and leisure.
  • Schools and education.

Description

Super Rebound 6 is a further development of Zaun’s Duo Sports. Designed for areas that receive high usage or where sport is taken seriously. It has been developed to offer a more attractive, practical and community friendly alternative to wooden rebound boards. Using twin horizontal 6 mm wires, the lower 1.2 m of the fence has a 50 x 66.6 mm mesh pattern. This robust mesh acts like a wooden rebound board in terms of rebound quality but has many advantages over wooden boards.

Fixings every 200 mm and rubber inserts at each fixing virtually eliminate rattle during play. Clamp bars covering panel ends ensures a safe playing surface with no sharp edges.

Features and benefits:

  • Specifically designed for sports applications to provide a more rigid and stronger fence line when used for consistent gameplay.
  • The open mesh style provides spectators and players better viewing for safety and security.
  • Supplied with EPDM inserts to reduce noise for local residents making Super Rebound quieter than rebound boards (78 dB).
  • Manufactured from welded mesh which will not degrade and leave splinters to injure players unlike wooden boards.
  • Supplied as a complete panel providing no mid rails to injure players.

Applications:

  • Civic and public sector.
  • Sport and leisure.
  • Schools and education.

General information
Finish

Galvanized and polyester powder coated

Uniclass 2015
Metal mesh panel fencing systems (Ss_25_14_67_51)Primary
Specification data - Metal mesh panel fencing systems
Product Reference

Super Rebound 6

Height

1.2–3.68 m, insert requirements.

Gates -
Pedestrian

Not required

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular

Not required

Required

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Standard product features

Finish:

Galvanized and polyester powder coated.

Mesh:

Super Rebound 6 mesh comprising 50 x 66.6 mm mesh with single 5 mm vertical wires at 50 mm centres and dual 6 mm horizontal wires at 66.6 mm centres.

Posts:

Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.

Post to panel fixing:

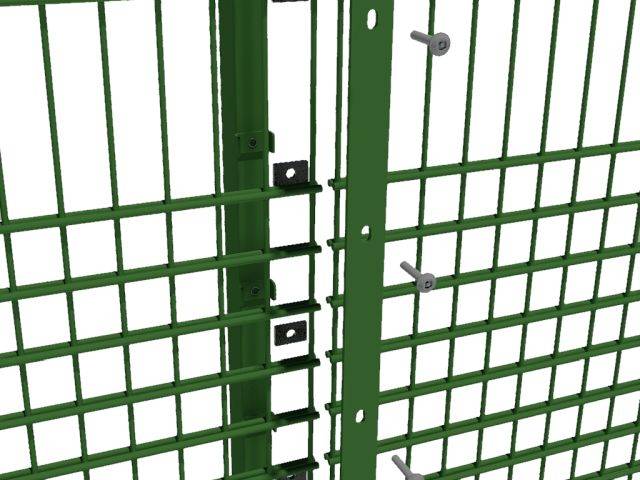

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres with EPDM inserts. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.

Gates:

Framed in a 50 x 50 mm RHS with Zaun Super 6 Rebound mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
