NBS Source

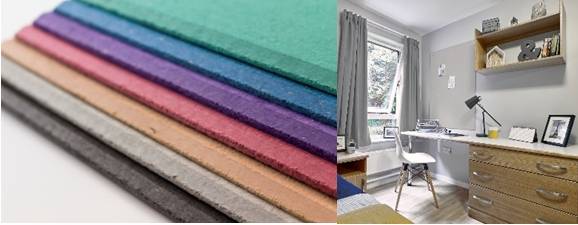

Sundeala K Board

Application

For use as a pin board, notice board, display board, screens, partitions and wall linings.

Description

Class D fire-rated recyclable board comprising compressed recycled cellulose fibres. Manufactured in accordance with the requirements of BS EN 622-3 under a management system certified to ISO 14001: 2004.


Features and benefits:

  • Cellulose fibre composition.
  • 100% recycled, 100% recyclable and naturally biodegradable.
  • No virgin wood fibres.
  • Fire tested to BS EN 13501‐1:2007+A1:2009.
  • Low VOC and low formaldehyde.
  • Non-toxic mineral pigment colour.
  • Splinter-free soft velvet surface finish.
  • Superior pin retention.
  • Staple-friendly.
  • Rigid, durable and robust.
  • Easy to cut, handle and install.
  • 25-year warranty.
  • British-made.

General information

Material

Recycled cellulose fibre

Size

900 x 600 mm

1200 x 600 mm

1200 x 900 mm

1200 x 1200 mm

1500 x 1200 mm

Show more

WarrantyDescription

25 years

Uniclass 2015

Pr_40_30_25_64 PinboardsPrimary

CAWS

N10/195 Noticeboards

P20/360 Pinboard

P20/50 Pinboard

Specification data - Pinboards Enhanced data

Material

Recycled cellulose fibre.

Recycled cellulose fibre.

Dimensions

-

Thickness

9 mm.

Size

For boards ≤2400 x 1200 mm.

900 x 600 mm.

Weight: 2.54 kg.

1200 x 600 mm.

Weight: 3.39 kg.

1200 x 900 mm.

Weight: 5.08 kg.

1200 x 1200 mm.

Weight: 6.77 kg.

1500 x 1200 mm.

Weight: 8.47 kg.

1800 x 1200 mm.

Weight: 10.16 kg.

2100 x 1200 mm.

Weight: 11.85 kg.

2400 x 1200 mm.

Weight: 13.54 kg.

Edges

Bevelled cut edge.

Straight cut edge.

Fire rating

Class D-s2, d0 (EN 13501-1).

Product Reference

Sundeala K Board

Colour

Other colour:

  • Lilac.
  • Wheat.
  • Charcoal.

Blue.

Green.

Grey.

Red.

White.

Show more

Density

650 kg/m³.

Formaldehyde emissions

E1.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

100%
