Stud Bolt

Verified by manufacturer 20 hours ago

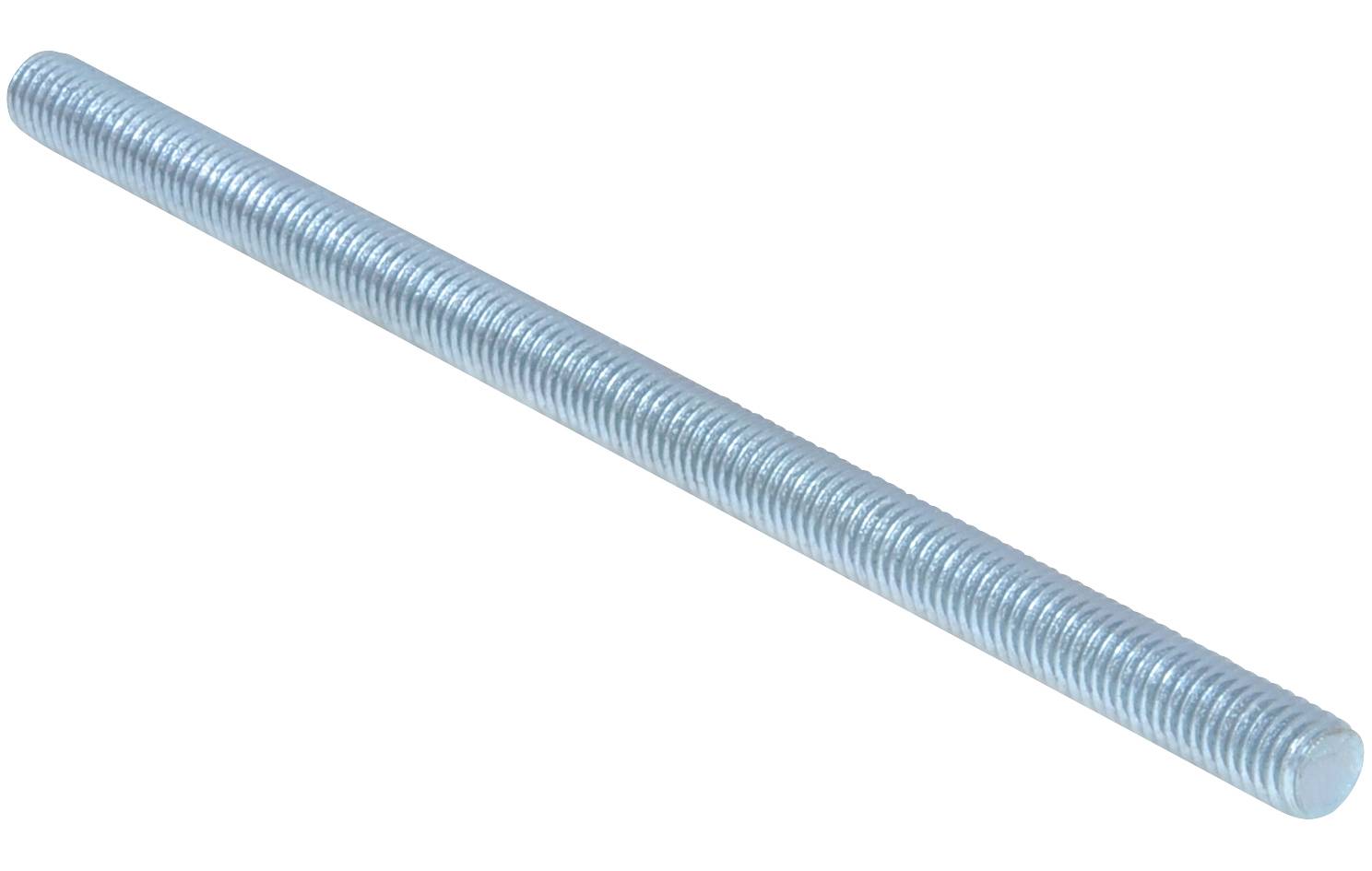

M10 stud bolt

Walraven Ltd Variant:

Stud bolt for fixing to rail, wall plates, etc.

Jump to:
+44 (0)1295 753400 Website

Application

For fixing to rail, wall plates, etc.

Description

Stud bolt for fixing to rail, wall plates, etc.


Features and benefits:

  • According to DIN 976-1.
  • Material: steel.
  • Zinc plated.
  • Tested for fire safety (M10).

General information

Color

Silver

Finish

Zinc plated

Material

Steel

Uniclass

Pr_20_29_03_88 Threaded anchorsPrimary

Specification data - Threaded anchors

Certification

According to DIN 976-1.

Format

Stud bolt.

Material

Steel.

Anchor length

25 mm.

Guidance for specification option:

Load capacity: 15 400 N.

30 mm.

40 mm.

Guidance for specification option:

Load capacity: 15 400 N.

50 mm.

Guidance for specification option:

Load capacity: 15 400 N.

60 mm.

Guidance for specification option:

Load capacity: 15 400 N.

70 mm.

Guidance for specification option:

Load capacity: 15 400 N.

80 mm.

Guidance for specification option:

Load capacity: 15 400 N.

90 mm.

Guidance for specification option:

Load capacity: 15 400 N.

100 mm.

Guidance for specification option:

Load capacity: 15 400 N.

120 mm.

Guidance for specification option:

Load capacity: 15 400 N.

150 mm.

160 mm.

Guidance for specification option:

Load capacity: 15 400 N.

180 mm.

Guidance for specification option:

Load capacity: 15 400 N.

200 mm.

Guidance for specification option:

Load capacity: 15 400 N.

Thread diameter

M10.

Finish

Zinc plated.

Sustainability data

Country of product manufacture

China
