Description

The range comprises slotted profiles to meet all roofline ventilation requirements, in conjunction with either Swish Gee Pee or other soffit boards. They are supplied in 10 mm and 25 mm air gap configurations.

General information
Specification data - Soffit grilles
Product Reference

C061

C065

C062

C063

C066

C237

C238

Standard product features

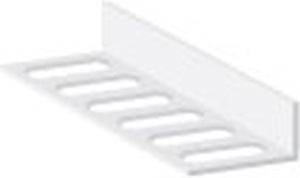

General purpose angle ventilators:

  • C061 (10 mm air gap), 30 mm wide.
  • C065 (25 mm air gap), 60 mm wide.

Soffit board end and the wall:

  • C062 (10 mm air gap), 30 mm wide.

For vertical fixing on top of the fascia:

  • C063 (10 mm air gap), 30 mm wide.

To engage into the fascia soffit groove and over the soffit board:

  • C066 (25 mm air gap), 56 mm wide.

To engage over the soffit boards on both edges:

  • C237 (10 mm air gap), 30 mm wide.
  • C238 (25 mm air gap), 56 mm wide.
