String Course
Description

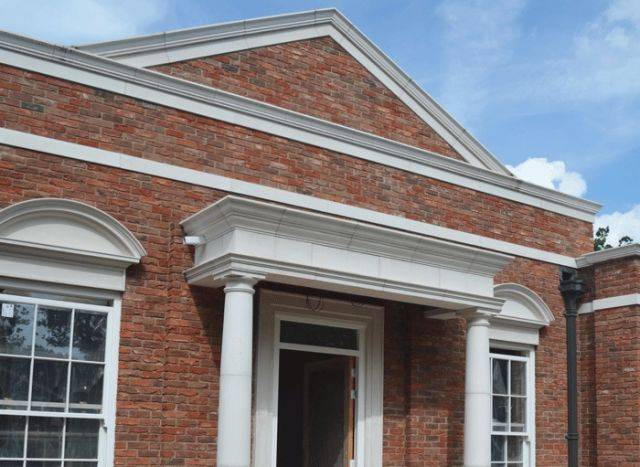

Cast stone string courses available in five standard designs to help add contrasting architectural elements. String courses can also be produced to individual requirements. String courses are also known as a band course.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

Features and benefits:

  • Suitable to breakup brickwork, they can be designed to be either flush within the wall or to project slightly.
  • Can be used in conjunction with other architectural dressing, such as plinth courses and quoins.

General information

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_93_52_13 Cast stone masonry unitsPrimary

CAWS

F22/110 Cast stone

Specification data - Cast stone masonry units

Product Reference

String Course

Type

Q350

Q360

Q361

Q362

Q370

Q371

Q400

Q450

Bespoke

Insert requirement.

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

Product Options

Type:

- Size/ Weight:

  • Q350 - 177 x 114 x 142 mm. 37 kg/m.
  • Q360 - 140 x 102 5 mm. 30 kg/m.
  • Q361 - 215 x 102 mm. 46 kg/m.
  • Q362 - 65 x 102 mm. 14 kg/m.
  • Q370 - 102 x 127 x 140 mm. 33 kg/m.
  • Q371 - 102 x 127 x 215 mm. 52 kg/m.
  • Q400 - 220 x 138 x 100 mm. 34 kg/m.
  • Q450 - 102+48 x 110 x 65 mm. 17 kg/m.
