Application

Suitable for exterior use in a variety of architectural situations.

Description

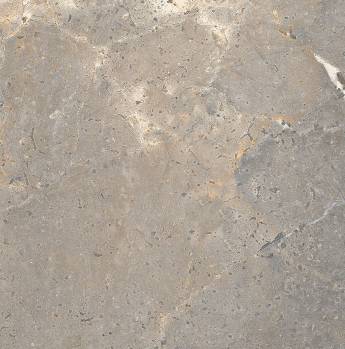

Porcelain paving slab.


Features and benefits:

  • Italian porcelain.
  • Full body porcelain stoneware.


Certifications:

  • CE marked.
  • Complies to ISO 13006‐G (Group BIa) and EN 14411‐G (Group Bla) (for outside specifications only).

General information

Color

Beige

Grey

Finish

Textured

Material

Porcelain

Shape

Rectangle

Length

1200 mm

Bespoke

Guidance for specification option:

Produced to order.

Width

600 mm

Bespoke

Guidance for specification option:

Produced to order.

Height

20 mm

Uniclass

Pr_35_93_96_19 Ceramic tilesPrimary

CAWS

Q25/50 Natural stone slabs

Q25/310 Natural stone slabs

Specification data - Ceramic tiles

Standard

To BS EN 14411.

Group

To BS EN 14411, group Bia.

Colour

Earth.

Size

1200 x 600 mm.

Bespoke.

Guidance for specification option:

Produced to order

Thickness

20 mm.

Surface

Textured.

Slip potential

-

Slip resistance value (SRV) / Pendulum test value (PVT) (minimum)

-

Standard

To BS 7932.

Requirement

36+ wet.

Recycled content

0%.

Edges

Sawn.

Dimensions and tolerances

To ISO 10545-2, +/-0.3%; +/-1 mm (max).

Joint size

5—6 mm.

Manufacturer guidance

Recommended minimum joint.

Modulus rupture

To ISO 10545-4, 50 N/mm².

Breaking strength:

To ISO 10545-4, 13.600 N.

Water absorption

To ISO 10545-3, 0.05%.

Abrasion resistance

To ISO 10545-6, 145 mm³.

DIN 51130

R11.

Fire performance

To EN 13823, Class A1 (wall); to EN 9239-1, Class A1fl (floor).

ThermalConductivity

To EN 12524, 1.3 W/m °K.

Manufacturer guidance

λ

Frost protection

To ISO 10545-12, resistant.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
