Description

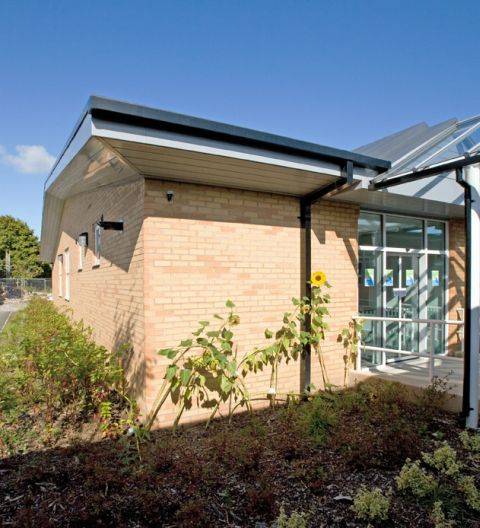

Pressed aluminium box gutter system.

  • High capacity.
  • Range of section sizes.
  • Direct fix to fascia through prepunched slots at 600 mm centres (through flat back of gutter), using 25 mm x 12 gauge stainless steel screws.
  • Jointing: External joint strap assembled dry, with gap for expansion. Joint finished internally with silicone sealant. No visible bolts through sole at joints.
  • Powder coated finish applied inhouse. Consult manufacturer for choice of colour. Thirty year guarantee available on application, subject to location.
  • Compatible downpipes listed separately.

General information
Finish

Anodized, colour ___

Nonstandard option.

Interpon D, colour ___, gloss level ___

Polyester powder coating. Standard option.

___ Powder coating, colour ___, gloss level ___

Non standard option.

PVDF, colour ___

Nonstandard option.

Uniclass 2015
External gravity rainwater drainage systems (Ss_50_30_02_28)Primary
Specification data - External gravity rainwater drainage systems
Product Reference

Stirling Gutter

Layout

As drawing ___

Section (nominal depth back face x width)

100 x 75 mm

External dimensions 87 x 102 mm. Gauge 1.6 mm.

125 x 100 mm

External dimensions 104 x 124 mm. Gauge 2 mm.

150 x 100 mm

External dimensions 112 x 150 mm. Gauge 2 mm.

150 x 150 mm

External dimensions 155 x 164 mm. Gauge 2 mm.

200 x 200 mm

External dimensions 200 x 200 mm. Gauge 2.5 mm. Internal bracket.

Outlet

76 mm diameter

102 mm diameter

Not available on gutter size 100 x 75 mm.

150 mm diameter

Not available on gutter sizes 100 x 75, 125 x 100, 150 x 100, 150 x 150 mm.

72 x 72 mm

102 x 102 mm

Not available on gutter size 100 x 75 mm.

102 x 76 mm

Finish

Anodized, colour ___

Nonstandard option.

Interpon D, colour ___, gloss level ___

Polyester powder coating. Standard option.

___ Powder coating, colour ___, gloss level ___

Non standard option.

PVDF, colour ___

Nonstandard option.

Other requirements

External angle 90 º

Gutter length (internal faces): 75 mm each face.

Internal angle 90 º

Gutter length (external faces): 75 mm each face.

External angle 135 º

Internal angle 135 º

External angle ___ º

Internal angle ___ º

External joint straps

Width: 100 mm.

Stop end left

Gutter length: 48 mm.

Stop end right

Gutter length: 48 mm.

Standard product features

Plain gutter length:

3 m, modular.

Finish:

– Standard polyester powder coating: Interpon D1036, standard colour range.

  • Electrostatically applied to BS EN 12206 and Qualicoat Class 1 standards.
  • Compliant to ECHA standards which includes Chrome Free solution.
  • Film thickness: 60µ (minimum 50µ).

Product Options

Outlet:

- Length:

  • Gutter sections 100 x 75, 125 x 100, 150 x 100: 250 mm.
  • Gutter sections 150 x 150, 200 x 200: 300 mm.

Section:

Indicative flow rates (maximum with central outlet): Roof areas are indicative maxima. Suitable outlet interval varies with local climate and other factors. Consult manufacturer.

– Gutter size 100 x 75 mm. Flow rate: 2.29 L/s.

  • Outlet size 76 mm diameter. Flow rate: 2.7 L/s. Roof area: 134 m².
  • Outlet size 72 x 72 mm. Flow rate: 2.9 L/s. Roof area: 143 m².

– Gutter size 125 x 100 mm. Flow rate: 4.05 L/s.

  • Outlet size 76 mm diameter. Flow rate: 3.2 L/s. Roof area: 156 m².
  • Outlet size 102 mm diameter. Flow rate: 5.5 L/s. Roof area: 265 m².
  • Outlet size 72 x 72 mm. Flow rate: 3.4 L/s. Roof area: 168 m².
  • Outlet size 102 x 102 mm. Flow rate: 6.5 L/s. Roof area: 312 m².

– Gutter size 150 x 100 mm. Flow rate: 5.36 L/s.

  • Outlet size 76 mm diameter. Flow rate: 3.34 L/s. Roof area: 160 m².
  • Outlet size 102 mm diameter. Flow rate: 5.8 L/s. Roof area: 280 m².
  • Outlet size 72 x 72 mm. Flow rate: 3.6 L/s. Roof area: 173 m².
  • Outlet size 102 x 102 mm. Flow rate: 7.1 L/s. Roof area: 341 m².

– Gutter size 150 x 150 mm. Flow rate: 10.12 L/s.

  • Outlet size 102 mm diameter. Flow rate: 7.3 L/s. Roof area: 350 m².
  • Outlet size 102 x 102 mm. Flow rate: 8.9 L/s. Roof area: 430 m².

– Gutter size 200 x 200 mm. Flow rate: 17.75 L/s.

  • Outlet size 102 mm diameter. Flow rate: 8.4 L/s. Roof area: 404 m².
  • Outlet size 150 mm diameter. Flow rate: 18.4 L/s. Roof area: 888 m².
  • Outlet size 102 x 102 mm. Flow rate: 10.4 L/s. Roof area: 500 m².
  • Outlet size 150 x 150 mm. Flow rate: 22.5 L/s. Roof area: 1080 m².
