SterlingOSB Zero StrongFix

SterlingOSB Zero StrongFix

Norbord Europe Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

OSB3, with tongue and groove, designed for structural use in a multitude of applications.

Jump to:
+44 (0)1786 812921 www.norbord.co.uk

Description

Oriented Strand Boards (OSB), SterlingOSB Zero (OSB3) cut to size with a customer groove pre-inserted specially for C-stud dry lining applications. With no voids or weak spots, and zero added formaldehyde, SterlingOSB StrongFix is an ideal choice over traditional plywood.

General information

Uniclass 2015

Pr_25_71_97_58 Oriented strand boardsPrimary

CAWS

K11/435 Oriented strand board wall sheathing

Specification data - Oriented strand boards

Product Reference

SterlingOSB Zero StrongFix

Standard product features

Thickness:

18 mm.

Board size:

2440 x 597 mm - square edge.

Technical properties:

  • Oriented strand board to BS EN 300, Type OSB3.
  • Density: 620–640 kg/m³.
  • Zero-added formaldehyde.
  • Thermal conductivity: 0.13 W/m·K.
  • Linear expansion: 0.15%, at 65–85% relative humidity.
  • Meets the E1 requirements as stated in BS EN 13986 or BS EN 300, Class 1.
  • Reaction to fire (BS EN 13501-1): Class D.
  • Tongue and groove boards have an expansion gap included in the joint. A 10 mm expansion gap, or a total of 2 mm per metre of boarding, (whichever is the greater), must be left at perimeters and upstands for both square edged and T&G panels.

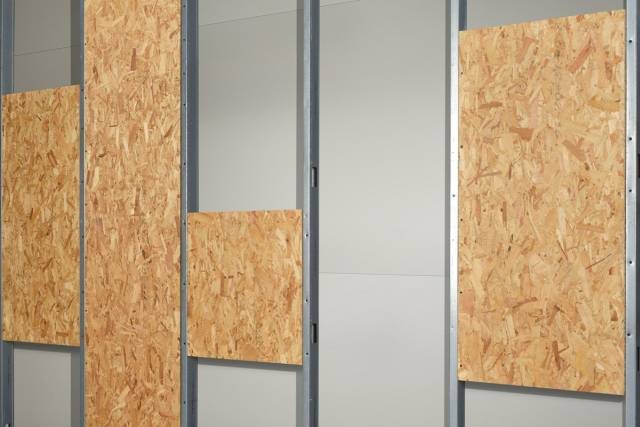

  • Provides secure anchorage areas for fixtures and fittings in metal C-stud dry lining applications.
  • Precision machined SterlingOSB 3 – with a custom groove to fit standard metal C-stud frames with 600 mm centres.
  • Provides a strong fixing point for fixtures and fittings up to 400 kg anywhere on the panel.
  • Meets BS 5234-2 requirements.
  • Suitable for domestic and commercial use.

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate
