Steico Universal

Steico Universal

Mike Wye Variant:

Sarking and sheathing boards for roofs with high compression strength.

Jump to:
+44 (0)1409 281644 www.mikewye.co.uk

Application

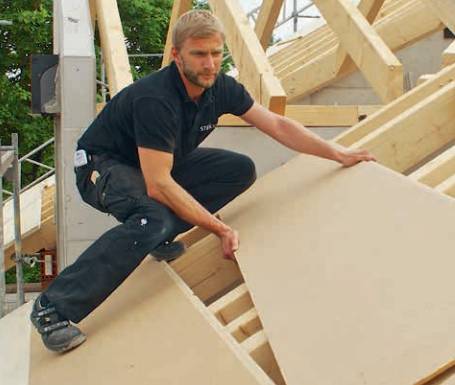

  • Sarking board for roof pitches ≥ 16°.
  • External walls in conjunction with a rain screen.
  • Suitable for warm roofs.

Description

Sarking and sheathing boards for roofs with high compression strength.


Features and benefits:

  • Ecological, produced without additional glues.
  • Excellent heat protection in summer.
  • Reduces thermal bridging.
  • Water vapour open.
  • Can be used with air-injected insulation from 35 mm thick.
  • May be left exposed for up to four weeks during construction.
  • Sustainable and recyclable like natural wood.

General information

Color

Brown

Material

Wood fibre

Shape

Rectangular

Size

2500 x 600 mm

Uniclass 2015

Pr_25_57_06_97 Wood fibre batt insulationPrimary

CAWS

K11/60 Board

K11/890 Board

Specification data - Wood fibre batt insulation Enhanced data

General requirements

Insulation products generally.

Standard

To BS EN 13171.

Thickness

22 mm.

Density

270 kg/m³.

Edges

Tongued and grooved.

Thermal conductivity (maximum)

0.048 W/mK.

Fire performance

Class E to EN 13501-1.

Product Reference

Steico Universal - Easy to handle format

Weight

5.83 kg/m².

Water vapour diffusion resistance

5 μ.

Water absorption

Short term.

≤ 1.0 kg/m².

SpecificHeatCapacity

2100 J/(kg*K).

Compression strength

200 kPa.

Compressive Strength (at 10% deformation)

0.20 N/mm².

Resistance to air penetration

≥ 100 (kPa*s)/m².

Airflow resistance.

TensileStrength

≥ 30 kPa.

Perpendicular to face.

Thermal resistance

(m²*K)/ W.

Size

2500 x 600 mm.
