Static Proform
Description

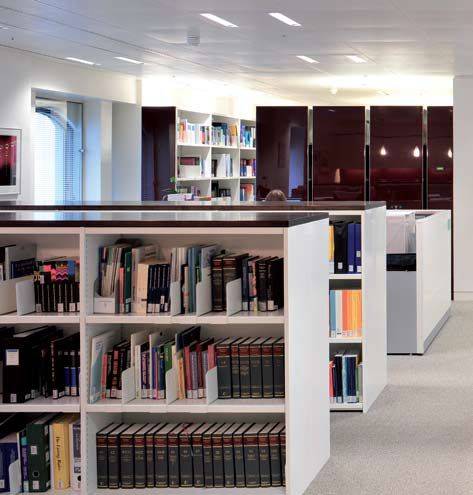

Proform shelving has been designed to fulfil many applications in libraries and offices. Being of double panel construction, the aperture is completely smooth and free of obstructions which may damage rare manuscripts, volumes, etc. It also means that when shelves are pitched asymmetrically, the shelf clips will not protrude into the adjoining aperture as is the case with single panel construction uprights.

The uprights have a double box section front post and an integral tee section rear connector to provide optimum performance within a slim upright. They can carry loads of up to 750 kg depending upon the shelf pitch and the shelves can carry a uniformly distributed load of 125 kg.

The system is fully adjustable with none of the storage shelves bolted together. Each shelf can therefore be readily moved by untrained staff in 25 mm increments and the free standing dividers are infinitely adjustable. All shelves and interchangeable accessories simply snap onto the flush fitting shelf clips and can be easily added or relocated at any time after the initial installation.

There are no sharp edges or angles within the system which could present a hazard to staff or stock. The flat side wall makes the product ideal for library and office applications where the care of the contents is of paramount importance.

General information

Size

Uniclass 2015

Pr_40_30_78_77 Shelf unitsPrimary

CAWS

N10/135 Storage and display units

N10/160 Shelving system

N10/30 Shelving system

Specification data - Shelf units

Product Reference

Static Proform

Size

Insert requirements or drawing reference.

Accessories

None

Book supports

Duplex shelves

Lockers

Pull out cradles

Pull out drawers

Pull out shelves

Standard product features

Gauges:

  • Uprights: 1.0 mm.
  • Shelves: 0.9 mm.
  • Backsheet: 0.8 mm.
  • Backbrace: 3.0 mm.
  • Fixed divider: 0.8 mm.
  • Side support rail: 1.0 mm.
  • Free standing divider: 1.0 mm.
  • Shelf clip: 2.0 mm.

Product Options

Size:

Various options available consult manufacturer for details and insert requirements.
