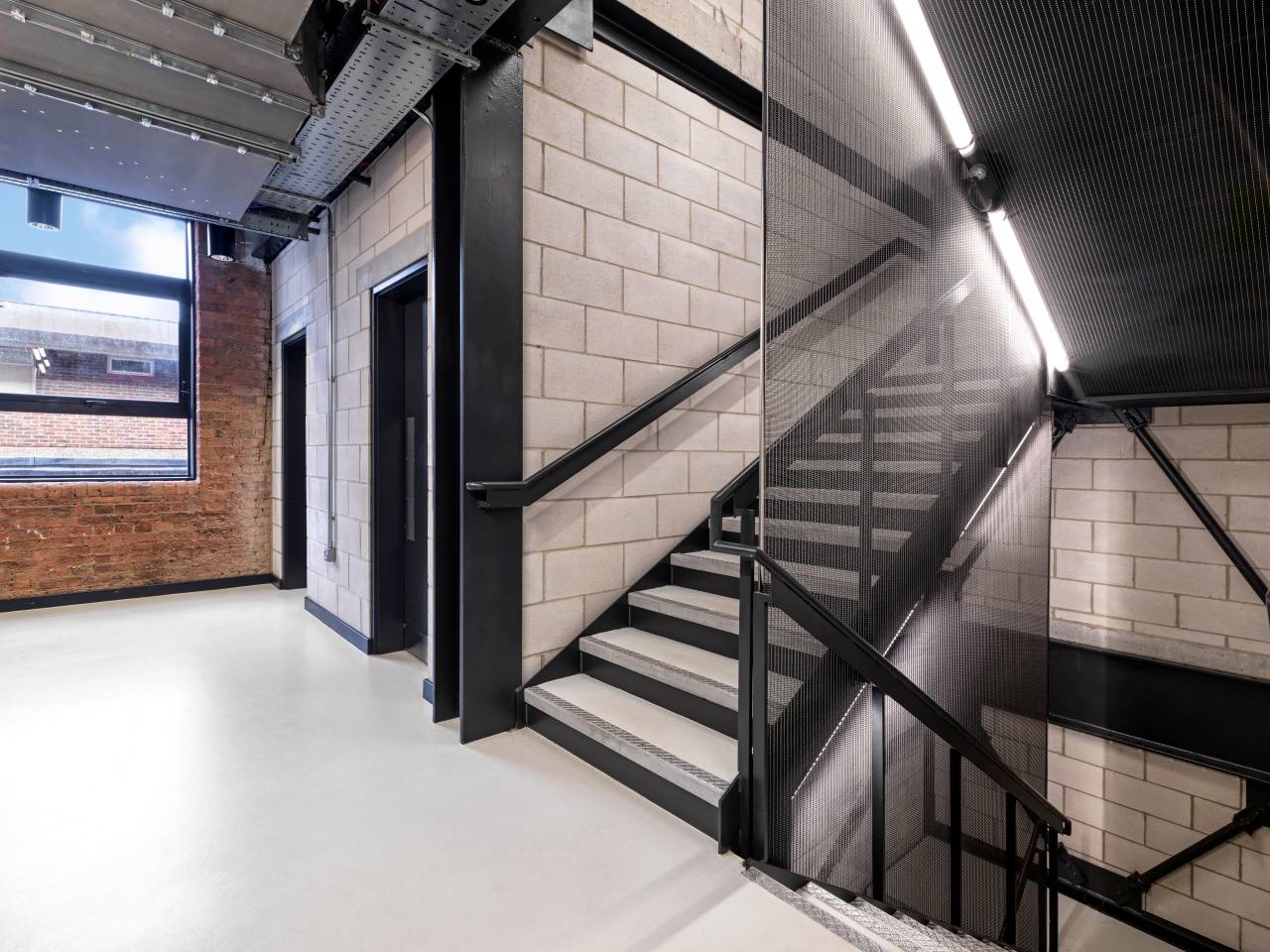

Cabled mesh - inserted roundbar
Woven stainless steel mesh protection for modern staircases.
Staircase protection, suitable for indoor and outdoor use.
Woven stainless steel mesh protection for modern staircases.
Features and benefits:
Color | Silver |
Finish | Mill Coated |
Material | Stainless steel Guidance for specification option: AISI 316L |
Shape | Rectangle Square Trapezoid |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/40 Mesh panel partitions K30/170 Mesh panel partitions L37/360 Metal panels |
Material | Stainless steel. |
Weave pattern | Futura 3110.Guidance for specification option:
Lago.Guidance for specification option:
Lamelle.Guidance for specification option:
Omega 1510.Guidance for specification option:
Omega 1520.Guidance for specification option:
Omega 1530.Guidance for specification option:
Omega 1540.Guidance for specification option:
Omega 1550.Guidance for specification option:
Omega Divergence.Guidance for specification option:
Sambesi 450.Guidance for specification option:
Tigris.Guidance for specification option:
Tigris 100x12.Guidance for specification option:
Manufacturer guidanceConsult manufacturer's literature for images and further details. |
Dimensions | |
Mesh size | Manufacturer's standard. |
Material section size | Manufacturer's standard.Guidance for specification option: Varies with weave pattern and size specified; see Weave pattern guidance and consult manufacturer's literature for details. |
Finish | Natural. |
Colour | Raw. |
Fixing method | Inserted round bars and eyebolts. |
Design/ size | Manufacturer guidanceInsert requirements, including drawing reference or schedule as applicable. Maximum height: 8000 mm. See individual mesh guidance or manufacturer's literature for allowable widths. |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 90% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
