Stainless steel guarding
Application
Machine guarding applications.
Description
Stainless steel guarding - BlueGuard.

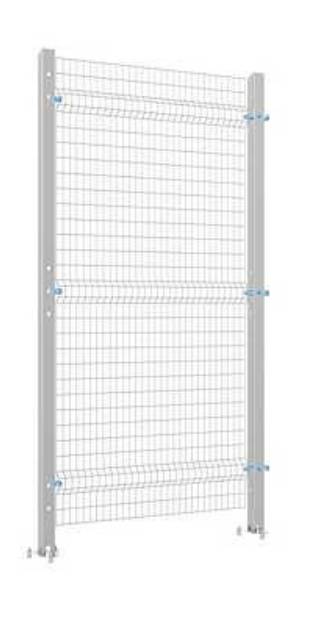

Wall panels:
The frameless stainless-steel mesh panels are made of 4 mm welded wire, strengthened by transversal folds. The panels are available in four standard sizes, making it easy to choose the correct size for any project. Thanks to the frameless design, the panels can easily be adapted on-site to fit specific requirements. The mesh size of 28 x 64 mm allows the panel to be installed 200 mm from the hazard, providing a safe machine guard.
Post and fixings:
The open, U-shaped design of the post helps prevent the accumulation of dust and residue, ensuring a hygienic machine guard. The post has inclined surfaces and floor spacers to avoid liquid pooling, enabling easier and more efficient cleaning. The panels are fastened to the posts with high-resistant, captive fixings made of techno-polymer and stainless steel to minimize metal-to-metal contact, avoiding bacterial accumulations.
General information
Color | Silver |
Material | Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | 484 mm 996 mm 1476 mm 1988 mm |
Height | 2240 mm Guidance for specification option: Post height. Manufacturer guidanceWall panel height: 2080 mm. |
Uniclass | |
CAWS | Q40/430 Proprietary fencing |
SKU Code | 16100010, 16100020 16100030, 16100040 |
Specification data - Post and panel fencing systems
Classification data | |
Posts | 16400010 – Post BG 60 x 60 x 2215 mm. 16800010 – Angle Profile BG. 16800020 – Kit Angle Fixings BG. 16800030 – Support for post BG. 16800040 – Kit Support for post BG. 16800050 – Kit adjustable post BG. 16800060 – Adjustable foot BG. 16800070 – Kit Support adjustable post BG. 16800080 – Top cover adjustable footBG. Manufacturer guidancePost: 60 x 60 mm U-shaped. Anchoring points: 3. |
Post foundations | Not required. Guidance for specification option: Surface fixed. |
Panels | 16100010 – Panel BG 2080 x 484 mm. 16100020 – Panel BG 2080 x 996 mm. 16100030 – Panel BG 2080 x 1476 mm. 16100040 – Panel BG 2080 x 1998 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Stainless steel |
