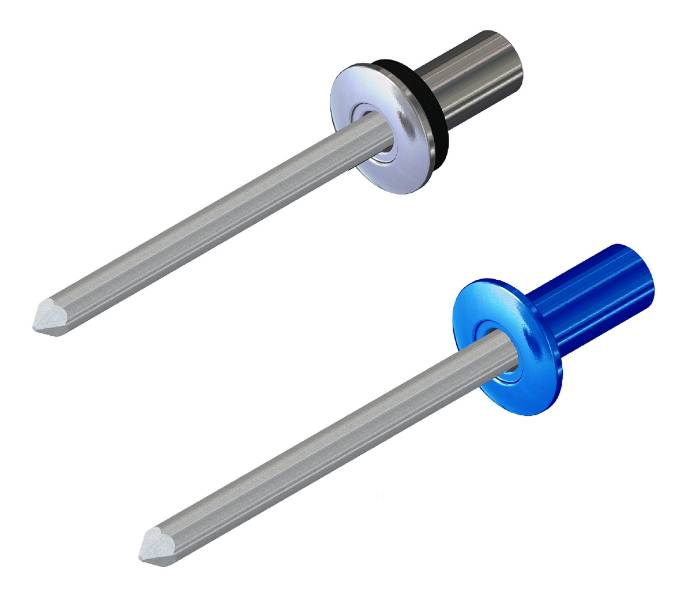

Stainless Steel Closed End / Sealed Head Rivet
Verified by manufacturer 7 days ago
A2 stainless steel sealed head rivets.
Application
- Sheeting and cladding.
- Facade and rainscreen.
- General construction.
Description
Closed end blind/ pop rivets.
Features and benefits:
- Composed of a domed A2 stainless body, with mandrel retained in the body after setting.
- Ideal for applications that need to be water/pressure tight.
- Stainless steel mandrel.
- Available in a wide range of RAL and BS and other panel colours.
- Available with small rubber sealing washer under the flange.
- Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.
Drill size:
4.9 mm.
Head diameter:
9.5 mm.
Mandrel diameter:
2.9 mm.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Lacquered Mill |
Material | Stainless steel |
Shape | Other |
Length | 8 mm 10 mm 12 mm 16 mm 20 mm |
Width | 4.8 mm |
Height | 2 mm |
Uniclass | |
CAWS | H31/10 Metal H31/110 Metal profiled sheet self-supporting cladding/ roof covering H31/120 Metal profiled sheet self-supporting cladding/ roof covering H32/110 Plastics H32/120 Plastics H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel H67/110 Metal roof tiling H67/120 Metal roof tiling with counterbattens H67/130 Metal vertical tiling H67/3 Metal roof tiling H67/5 Metal roof tiling H67/8 Metal vertical tiling |
SKU Code | RSH-SS, RSH-SS-LAC |
Product range |
Specification data - Blind (pop) rivets
Classification data | |
Material | Stainless steel. |
Form | Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 10. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 10 - W. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 12. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 12 - W. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 16. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 16 - W. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 20. Lacquered Sealed Head Rivets, RSH-SS-LAC-4.8 x 20 - W. Sealed Head Rivets, RSH-SS-4.8 x 8. Sealed Head Rivets, RSH-SS-4.8 x 8 - W. Sealed Head Rivets, RSH-SS-4.8 x 10. Sealed Head Rivets, RSH-SS-4.8 x 10 - W. Sealed Head Rivets, RSH-SS-4.8 x 12. Sealed Head Rivets, RSH-SS-4.8 x 12 - W. Sealed Head Rivets, RSH-SS-4.8 x 16. Sealed Head Rivets, RSH-SS-4.8 x 16 - W. Sealed Head Rivets, RSH-SS-4.8 x 20. Sealed Head Rivets, RSH-SS-4.8 x 20 - W. Manufacturer guidanceSee manufacturer's datasheet for further information. |
Size | See 'Form' above. |
Head style | Sealed cap domed. |
Colour | Guidance for specification option: Consult manufacturer and insert RAL or BS colour requirement. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel |
Recyclability | 100% |
