Stainless Brackets and Profiles - Facade Support

Designed using stainless steel for use where specification requires resistance to localised corrosion due to nature of building and/or local environment. Available in both Stainless steel 304 (A2) and 316 (A4) subject to specification requirements.

UL (Winmark, UKAS accreditation) approved facade systems, approval recognised by the NHBC.

The EVT stainless steel brackets have a superior thermal performance due to the low thermal conductivity of stainless steel. Often used to improve the overall U-value of a façade build up, which in some instances can lead to a reduction in the thickness of insulation.

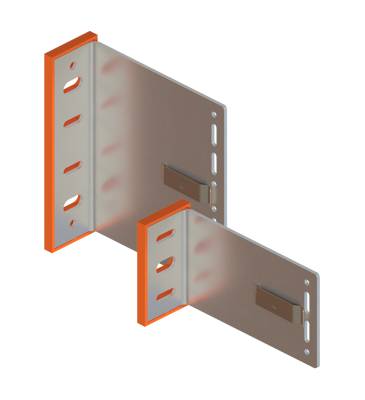

EVT Stainless L-brackets have a better design resistance than the standard EVT L-brackets and can be used where projects require higher loads acting on the substructure.

Stainless steel subframe bracket systems for rainscreen are designed in accordance with BS EN 1090-3:2008 and / or Euro code 3 – Part 1.

Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is typically used on all other positions of the vertical rail to absorb the project wind loading.

The brackets base has fixing slots suitable for concrete, steel and timber, it also includes slots and holes for Fixed and Sliding Point brackets.

Brackets are available with various thermal pad options to improve overall thermal performance.

The system comprises of:

• EVT II L Bracket A2.
• EVT II Thermal pads.
• EVT II L Soffit Bracket Thermal AL - 80 x 60 x 3/4mm.
• L-Profiles (3.0 m length).
• T-profiles ( 3.0 m length
• C-Profiles (3.0 m length).
• Hat Profile (3.0 m length).
• Cladding (supplied by others).
