Application

Suitable for floors and walls, for use with underfloor heating. Can be installed as a floating floor (consult manufacturer for underlay options).

Description

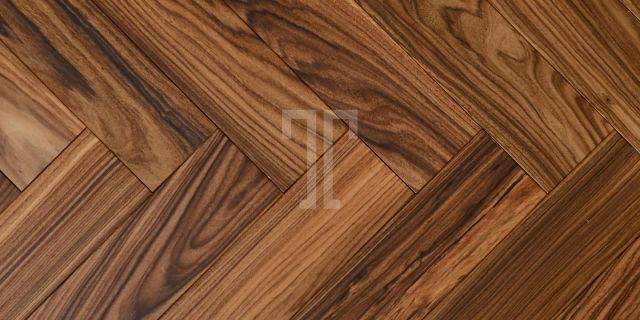

Engineered wood flooring, designed to be laid in a herringbone format.

Features and benefits:

  • Part of the SPECIALIST WOODS collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for floors and walls, for use with underfloor heating. Can be installed as a floating floor (consult manufacturer for underlay options).

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier

Related products:

A range of complementary products is available (Mimas only: includes L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details).

Guarantee:

  • Birnham/ Darwin: 25-year product warranty.
  • Mimas: 20-year product warranty.

Specification data
Product Reference

SPECIALIST WOODS Collection - Herringbone

Type

Birnham

Darwin

Mimas

Standard product features

Technical characteristics:

  • Construction: Two ply engineered, 100% hardwood.
  • Surface texture: Smooth
  • Tolerance: ±0.25 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Formaldehyde emission: E1.
  • Tonal variation: Medium natural.
  • Batch variation: Not advised to mix batches in one floor area.
  • Tone: Dark.

Product Options

Type:

- Birnham:

  • Width: 80 mm.
  • Thickness: 19 mm.
  • Length: 450 mm.
  • Wood species: Tajibo.
  • Grade: Exotic wood.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Surface texture: Smooth.
  • Edge detail: Square shouldered.
  • Profile: Tongue and grooved to all sides.
  • Certification: FSC 100%.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Janka hardness rating: 1500 lbf (6670 N) Exotic.

- Darwin:

  • Width: 80 mm.
  • Thickness: 19 mm.
  • Length: 450 mm.
  • Wood species: Morado.
  • Grade: Exotic wood.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Surface texture: Smooth.
  • Edge detail: Micro bevelled.
  • Profile: Tongue and grooved to all sides
  • Certification: FSC 100%.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Janka hardness rating: 1500 lbf (6670 N) Exotic.

- Mimas:

  • Width: 70 mm.
  • Thickness: 15 mm.
  • Length: 490 mm.
  • Wood species: American Black Walnut.
  • Grade: Nature.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Unfinished - site preparation required.
  • Surface texture: Smooth.
  • Edge detail: Square shouldered.
  • Profile: Groove to three sides.
  • Thermal conductivity: 0.08 m²K/W (0.8 Tog).
  • Janka hardness rating: 1010 lbf (4500 N).
