SPAX WIROX Coated Washer Head Timber Construction Screws

Verified by manufacturer 2 days ago

Partially threaded, 5 mm

Spax UK Ltd Variant:

Silver full and partial thread washer head construction screws.

Jump to:
01902703355 Website

Application

For indoor use and outdoor use without direct exposure to weather - SPAX WIROX PARTIAL and FULL THREAD WASHER HEAD 'CONSTRUCTION' screws are the solution for various projects using wood.

Description

Silver full and partial thread washer head construction screws.

Features and benefits:

  • Secure connection with high load bearing capacity. Suited for battens and squared timbers.

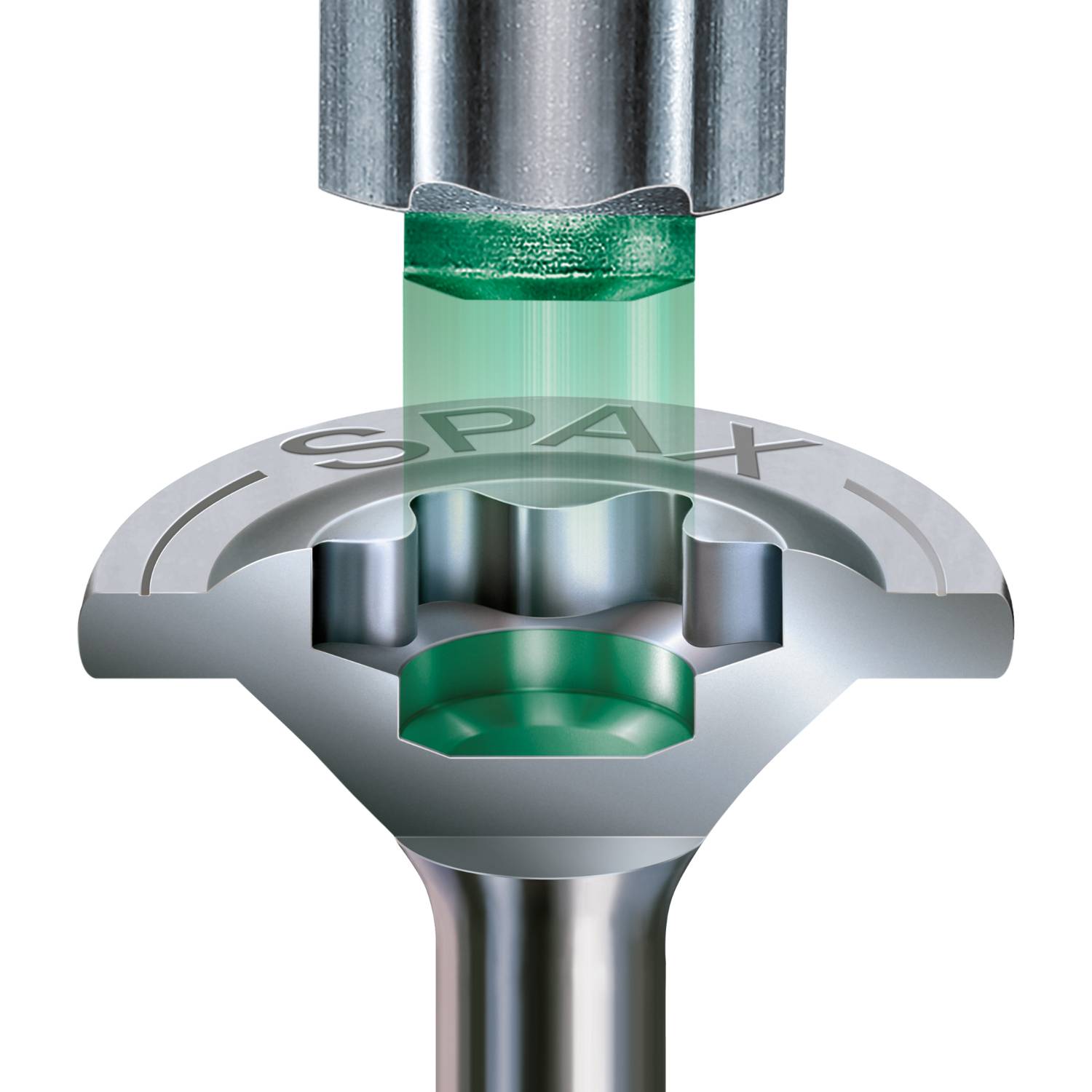

  • T STAR plus bit recess. For a more positive and secure fit of the bit and better driving in (e.g. when working overhead)
  • No pre-drilling required (depending on wood).
  • 4CUT point ensures safe fastening with low effort, reduces splitting of the wood and reduces the screwing-in torque required.
  • Quick and safe fastening.
  • Mills into the wood.
  • Fix close to an edge.
  • WIROX coated screws are silver in appearance. WIROX is chromium (VI) free and far more environmentally-friendly than conventional surfaces. WIROX screws have a high level of resistance to corrosion and are suited for indoor use or outdoor use without direct exposure to weather. WIROX is more resistant to mechanical stress.

General information

Color

Silver

Finish

Coated

Material

Steel

Shape

Circle

Length

40 mm

50 mm

60 mm

77 mm

80 mm

Show more

Width

5 mm

6 mm

8 mm

10 mm

Uniclass

Pr_20_29_76_98 Wood screwsPrimary

CAWS

Z20/380 Screws

Specification data - Wood screws

Classification data

Material

Steel.

Finish

WIROX-coated.

Screw details

-

Head option

Washer head.

Screw pattern

Partially threaded shank.

Size

-

Diameter

5 mm.

Length

77 mm.
87 mm.
107 mm.

Manufacturer guidance

Consult manufacturer's literature for package number options.

Drive

T-STAR plus (T20).

Sustainability data

Country of product manufacture

Germany

Material

Steel

Literature

SPAX - Sustainability

SPAX - Sustainability

SPAX Professional Catalogue

SPAX Professional Catalogue
