Spacepod - Island

Verified by manufacturer 4 months ago

Bailey Street Furniture Group Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Acclaim Accreditation

    Certificate type

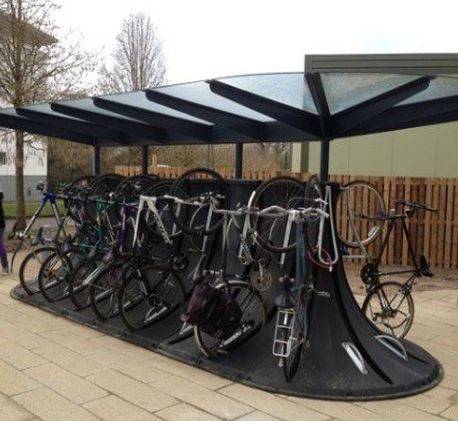

Vertical, space-saving cycle rack, designed to create an island configuration.

Jump to:
+44 (0)1625 322 888 Website

Application

For use in areas where space is at a premium.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

Vertical, space-saving cycle rack, designed to be installed with Cyclepods to form an island configuration.


Features and benefits:

  • Highly configurable using combinations of Spacepod and Cyclepod units to form an island shape.
  • Available in straight and curved formations.
  • Can be paired with shelters and canopies.
  • The upper and lower securing arms provide two locking points per bicycle (front wheel and frame/ back wheel and frame) for extra security.
  • Practical and easy to use.
  • Channel is compatible for use with 99% of all standard European tyre widths.
  • Includes rainwater holes in the base of every track for drainage.
  • Space-saving; up to 50% smaller than traditional bike storage units.
  • Metal reinforcement plates are added to the securing arms.

General information

Color

Black

Guidance for specification option:

Recyclable.

Red

Yellow

Blue

Guidance for specification option:

Royal blue and light blue.

Green

Guidance for specification option:

Dark or light green.

Show more

Finish

-

Manufacturer guidance

Dimpled effect with varying colour range.

Material

Stainless steel

Nickel

Medium density polyethylene (MDPE)

Shape

Other

Width

1630 mm

Height

1078 mm

Warranty description

Two year

Uniclass

Pr_40_30_21_65 Plastics cycle lockersPrimary

CAWS

Q50/212 Cycle lockers

Q50/210 Cycle stands

Specification data - Plastics cycle lockers

Stand type

Semi-vertical cycle stand.

Dimensions

-

Width

1630 mm.

Depth

546 mm.

Height

1078 mm.

Materials

-

Frame

Medium density polyethylene (MDPE).

Panels

Medium density polyethylene (MDPE).

Colour

Black.

Guidance for specification option:

Standard (recyclable).

Grey.

Light green.

Dark green.

Light blue.

Red.

Royal blue.

Stone effect.

Yellow.

Accessories

Not required.

Canopy option.

Configuration

-

Manufacturer guidance

Insert requirements.

Securing arms

Galvanized steel rod, 20 mm.

Guidance for specification option:

Standard.

Recycled stainless steel tube, 25 mm.

Guidance for specification option:

On request.

Top plate

Galvanized steel, 5 mm.

Stainless steel, 5 mm.

Weight

15 kg each.

Fixings

M12/M14 monties, drilled to a depth of 100 mm (maximum), two fixing bolts required (per unit).

Sustainability data

Country of material origin

United Kingdom

Material

Stainless steel

Nickel

Medium density polyethylene (MDPE)

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Up to 100%

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

BSFG ISO 9001 - 14001

CHAS

CHAS

CHAS

Constructionline Gold

Constructionline Gold

Constructionline Gold

 Acclaim Accreditation

Acclaim Accreditation

Health & Safety Accreditation
