Spacepod - Curved Section
Application

For use in areas where space is at a premium or where only wall space is available.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

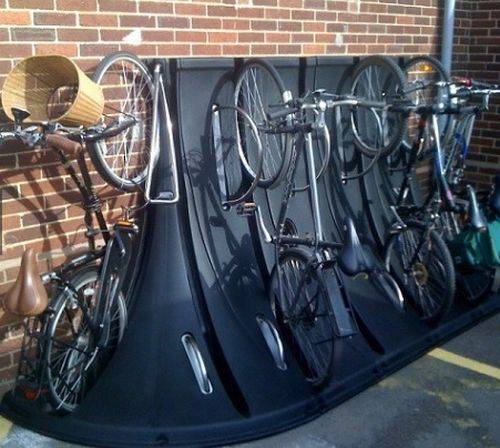

Vertical, space-saving cycle rack, designed to be installed in a curved configuration within open spaces.

Features and benefits:

  • Highly configurable - Spacepod and Cyclepod units can be combined to create walls and islands to make optimum use of the available space.
  • Also available in straight and island formations.
  • Can be paired with shelters and canopies.
  • The upper and lower securing arms provide two locking points per bicycle (front wheel and frame/ back wheel and frame) for extra security.
  • Practical and easy to use.
  • Channel is compatible for use with 99% of all standard European tyre widths.
  • Includes rainwater holes in the base of every track for drainage.
  • Space-saving; up to 50% smaller than traditional bike storage units.
  • Metal reinforcement plates are added to the securing arms.

Application:

For use in areas where space is at a premium or where only wall space is available.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

General information

Features

Highly configurable, can be paired with shelters and canopies and the upper and lower securing arms provide two locking points per bicycle for extra security. Practical and easy to use, the channel is compatible for use with 99% of all standard European tyre widths and includes rainwater holes in the base of every track for drainage. Space-saving and has metal reinforcement plates added to the securing arms

Finish

Dimpled effect with varying colour range

Material

The body is medium density polyethylene (MDPE), fixings are stainless steel, ground anchors are zinc plated and nuts are nyloc

Shape

Curved

Size

546 x 1630 x 1078 mm

WarrantyDescription

2 year warranty

Uniclass 2015

Pr_40_30_21_65 Plastics cycle lockersPrimary

CAWS

Q50/210 Cycle stands

Q50/212 Cycle lockers

Q50/30 Street furniture

Specification data - Plastics cycle lockers Enhanced data

Product Reference

Spacepod - Curved Section

Stand type

Semi-vertical cycle stand

Dimensions

-

Width

1630 mm

Depth

546 mm

Height

1078 mm

Materials

-

Frame

Medium density polyethylene (MDPE)

Panels

Medium density polyethylene (MDPE)

Colour

Black

Standard (recyclable).

Grey

Light green

Dark green

Light blue

Red

Royal blue

Stone effect

Yellow

Accessories

Not required

Canopy option

Configuration

Insert requirements.

Securing arms

Galvanized steel rod, 20 mm

Standard.

Recycled stainless steel tube, 25 mm

On request.

Top plate

Galvanized steel, 5 mm

Stainless steel, 5 mm

Weight

15 kg each

Fixings

M12/M14 monties, drilled to a depth of 100 mm (maximum), two fixing bolts required (per unit)

Standard product features

Colour:

Available in black (recyclable), red, yellow, royal blue, light blue, dark green, light green, grey or stone effect.

Features:

Highly configurable, can be paired with shelters and canopies and the upper and lower securing arms provide two locking points per bicycle for extra security. Practical and easy to use, the channel is compatible for use with 99% of all standard European tyre widths and includes rainwater holes in the base of every track for drainage. Space-saving and has metal reinforcement plates added to the securing arms.

Finish:

Dimpled effect with varying colour range.

Material:

The body is medium density polyethylene (MDPE), fixings are stainless steel, ground anchors are zinc plated and nuts are nyloc.

Shape:

Curved.

Size:

546 x 1630 x 1078 mm.

Warranty description:

2 year warranty.

Recycled content:

Up to 100%.

Recyclability:

All Spacepods are made from recyclable material.

Country of origin:

United Kingdom.

Environmental information

Recyclability

All Spacepods are made from recyclable material

Recycled content

Up to 100%
